Introduction:

The HDMI extender over single Cat5e/6 with bi-directional IR and audio return Channel extends high-definition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5e/6 cable

Features:

EDID management, which allows and encourages source and display handshake for seamless integration
Equipped with ARC (audio return channel) functionality, which allows the connected ARC equipped display to send audio data upstream to an ARC equipped A/V receiver or surround audio controller
The result is an easy and flexible installation eliminating the need for any separate S/PDIF audio connection
Also features a coaxial audio breakout to extract audio, as well as an HDMI loop out for an additional HDMI output
With only one cost effective Cat5e/6 cable, high-definition sources with HDMI output can be connected to high-definition displays with HDMI inputs over long distance
Deep color video, DTS-HD or Dolby TrueHD audio, and HDCP is supported and compatible with the in addition, is also equipped with bi-directional IR pass-through which allows for source or display control

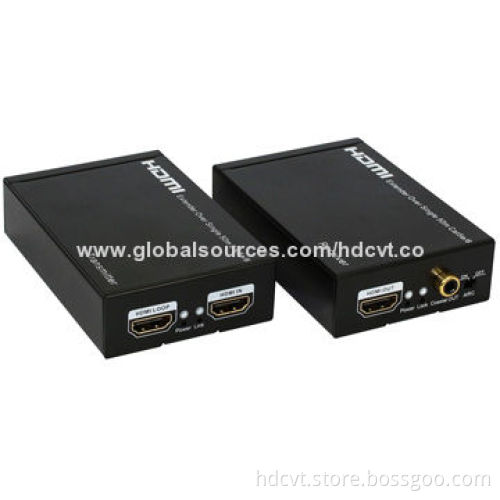

Includes two units: transmitting and receiving
The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable
The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals
The offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application
Allows HDMI audio/video and IR signals to be transmitted over a single Cat5e/6 cable
Bi-directional IR system allowing for control of source or display (IR accessories included)
EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment
ARC for two-way communication between ARC equipped display and ARC equipped A/V receiver
Coaxial break out to extract audio
Allows for cascading via additional HDMI loop out port
Transmission range: extends 1,080P resolution up to 164ft/50m over a single Cat5e or Cat6 cable
Works with HDMI and HDCP compliant devices
Supports up to 1,080P -high-definition resolution
Compact design for an easy and flexible installation

Specifications:

HDCP compliance: yes
Video bandwidth: single-link 165MHz (4.95Gbps)
Video support: 480i/480/720/1,080i/1,080P at 60fps
Audio support: surround sound (up to 7.1-channel) or stereo digital audio
Transmission range: HD (1,080P 24-bit color) up to 50m

The HDMI extender over single Cat5e/6 with bi-directional IR and audio return Channel extends high-definition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5e/6 cable

EDID management, which allows and encourages source and display handshake for seamless integration

Equipped with ARC (audio return channel) functionality, which allows the connected ARC equipped display to send audio data upstream to an ARC equipped A/V receiver or surround audio controller

The result is an easy and flexible installation eliminating the need for any separate S/PDIF audio connection

Also features a coaxial audio breakout to extract audio, as well as an HDMI loop out for an additional HDMI output

With only one cost effective Cat5e/6 cable, high-definition sources with HDMI output can be connected to high-definition displays with HDMI inputs over long distance

Deep color video, DTS-HD or Dolby TrueHD audio, and HDCP is supported and compatible with the in addition, is also equipped with bi-directional IR pass-through which allows for source or display control

Includes two units: transmitting and receiving

The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable

The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals

The offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application

Allows HDMI audio/video and IR signals to be transmitted over a single Cat5e/6 cable

Bi-directional IR system allowing for control of source or display (IR accessories included)

EDID management which supports default HDMI EDID and has the ability to learn the EDID of display equipment

ARC for two-way communication between ARC equipped display and ARC equipped A/V receiver

Coaxial break out to extract audio

Allows for cascading via additional HDMI loop out port

Transmission range: extends 1,080P resolution up to 164ft/50m over a single Cat5e or Cat6 cable

Works with HDMI and HDCP compliant devices

Supports up to 1,080P -high-definition resolution

Compact design for an easy and flexible installation

HDCP compliance: yes

Video bandwidth: single-link 165MHz (4.95Gbps)

Video support: 480i/480/720/1,080i/1,080P at 60fps

Audio support: surround sound (up to 7.1-channel) or stereo digital audio

Transmission range: HD (1,080P 24-bit color) up to 50m
