HDMI Extenders, Over Single 50m/164ft UTP Cables with Dual IR Control

HDMI Extenders, Over Single 50m/164ft UTP Cables with Dual IR Control

Get Latest Price

Payment Type:: T/T, L/C at Sight or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C at Sight or PayPal

Product Description

Introduction:

Extends high definition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5e/6 cable
Features EDID management, which allows and encourages source and display handshake for seamless integration
With only one cost effective Cat5e/6 cable, high-definition sources with HDMI outputs can be connected to high-definition displays with HDMI inputs over long distances
Deep color video, DTS-HD or Dolby TrueHD audio is supported and compatible with the extender
In addition, the extender is also equipped with bi-directional IR pass-through which allows for source or display control

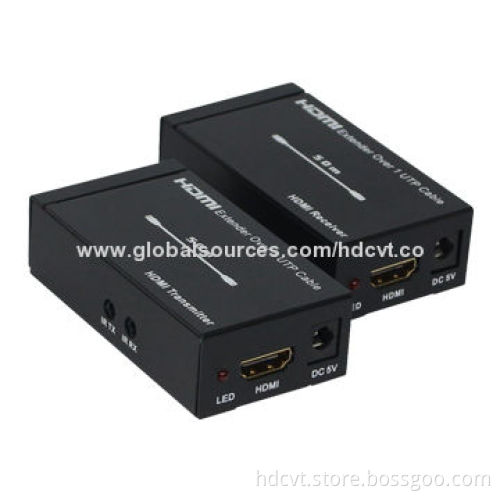

The extender includes two units: transmitting unit and receiving unit
The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/6 cable
The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals
The extender offers the most convenient solution for HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for any application

Features:

Allows HDMI audio/video and IR signals to be transmitted over a single Cat5e/6 cable
Bidirectional IR system allowing for control of source or display (IR accessories included)
2D/3D EDID management
Transmission range: extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable
Works with HDMI and HDCP compliant devices
Supports up to 1,080P high-definition resolution
Compact design for an easy and flexible installation

Specifications:

Video band width: single-link 165MHz (4.95Gbps)
Video support: 480i/480P/720P/1,080i/1,080P at 60
Audio support: surround sound (up to 7.1-CH) or stereo digital audio
Transmission range: HD (1,080P 24-bit color) - up to 50m (164ft)
Input TMDS signal: 3.3 volts
Input DDC signal: 5.0 volts/P-P
ESD protection: human body model ±8kV (air-gap discharge), ±4kV (contact discharge)
PCB stack-up: 4 layouts
HDMI connector: type A 19-pin female
RJ-45 connector: WE/SS 8P8C
3.5mm connector: (TX and RX) IR receiver/IR blaster

Mechanical specifications:

Housing: metal enclosure
Power supply: (2) 5V1A DC
Power consumption: 2.5W (TX), 1.2W (RX)
Operating temperature: 32-104°F
Storage temperature: -4 -140°F
Relative humidity range: 20-90% RH (no condensation)
