Digital to Analog Decoders, 20Hz-20kHz, ±0.5dB Frequency Response

Get Latest Price

Payment Type:: T/T, L/C at Sight or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C at Sight or PayPal

Product Description

Introduction:

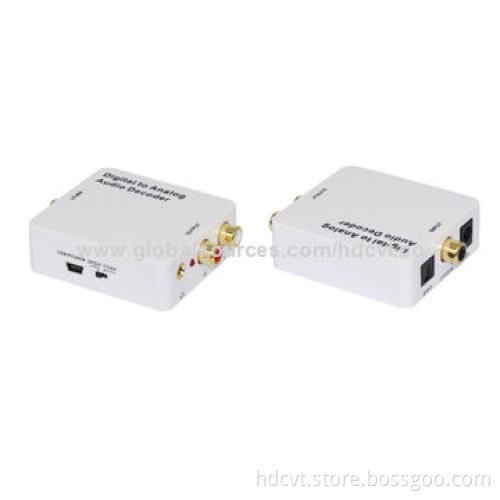

The digital to analog audio decoder features an integrated 24-bit audio DSP
This unit can decode a variety of digital audio formats, including Dolby digital (AC3), DTS and PCM
It can simply connect an optical (Toslink) or digital coaxial cable to the input, then the decoded audio can be transmitted as 2 channel analog audio via the stereo RCA output or the 3.5mm output (suitable for headphones) simultaneously

Features:

Decode Dolby digital (AC3), DTS or PCM digital audio to stereo audio output
Supports PCM 32, 44.1, 48, 96kHz sample frequency audio decode
Supports Dolby digital 5.1 samples, DTS-ES6.1 samples audio decode
No need to install drivers
Portable, flexible, plug-and-play function

Specifications:

Input ports: 1 x optical (Toslink), 1 x digital coaxial
Output ports: 1 x RCA (L/R), 1 x 3.5mm (headphone)
Signal to noise ratio: 120dB
Degree of separation: 85dB
Frequency response: 20Hz-20kHz, ±0.5dB
Dimensions (D x W x H): 72x55x20mm
Weight: 40g

Package contents:

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
- Audio decoder: 1 piece
- 5V/1A DC adapter: 1 piece
- User's manual: 1 piece

The digital to analog audio decoder features an integrated 24-bit audio DSP

This unit can decode a variety of digital audio formats, including Dolby digital (AC3), DTS and PCM

It can simply connect an optical (Toslink) or digital coaxial cable to the input, then the decoded audio can be transmitted as 2 channel analog audio via the stereo RCA output or the 3.5mm output (suitable for headphones) simultaneously

Decode Dolby digital (AC3), DTS or PCM digital audio to stereo audio output

Supports PCM 32, 44.1, 48, 96kHz sample frequency audio decode

Supports Dolby digital 5.1 samples, DTS-ES6.1 samples audio decode

No need to install drivers

Portable, flexible, plug-and-play function

Input ports: 1 x optical (Toslink), 1 x digital coaxial

Output ports: 1 x RCA (L/R), 1 x 3.5mm (headphone)

Signal to noise ratio: 120dB

Degree of separation: 85dB

Frequency response: 20Hz-20kHz, ±0.5dB

Dimensions (D x W x H): 72x55x20mm

Weight: 40g
