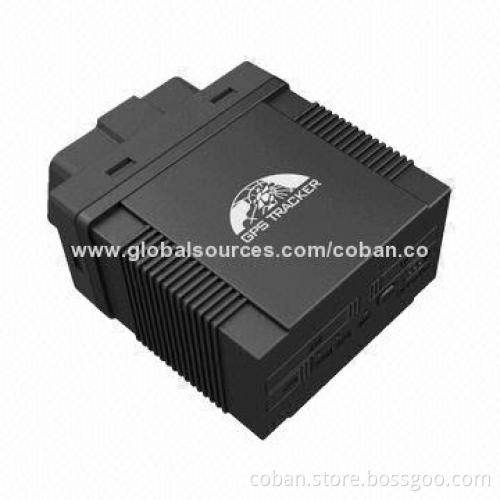

OBDII Interface GPS Tracker, GPS306 Tracking Vehicle by Mobile Phone/Internet

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

How does the GPS tracker work:

It is our newly designed plug-and-play function OBD tracker
It could read OBD parameters from car ECU and GPS tracking for car location
All data will be transmitted to the backend server for remote diagnostic and tracking purpose

Content specifications:

DIM: 64.5x50x27mm
Weight: 60g
Network: GSM/GPRS
Band: 850/900/1,800/1,900MHz
GPS sensitivity: -165dBm
GPS accuracy: 5m
Backup battery: chargeable 3.7V, 200mAh Li-ion battery
Storage temperature: -40 to +85°C
Operating temperature: -20 to +70°C

Applying directions:

12-24V cars, vehicles, fleet management

The product supports existing OBD protocols:

SAE J1850 PWM
SAE J1850 VPW
ISO 9141-2
ISO 14230-4 (KWP2000-5bps)
ISO 14230-4 (KWP2000-fast)
ISO 15765-4 (CAN500-11BIT)
ISO 15765-4 (CAN500-29-bit)
ISO 15765-4 (CAN250-11-bit)
ISO 15765-4 (CAN250-29-bit)

Main features:

Vehicle OBD II tracker (9-40V)
Location based service (LBS) + GPS double real-time tracking solution monitor
SOS panic button
Geo-fence, movement, over-speed alarms, low-battery, ext, power off alarm
Alarms under ARM: shock/ACC alarms
Request for OBD data by SMS:
- Fuel measurement
- Fuel consumption
- Mileage
- Speed
- Engine status
- Diagnostic trouble codes
Trouble and maintenance notification
Multi power-saving modes:
- Sleep by time/shock sensor
- Deep sleep
- Awake at specific time
Saves GPRS traffic mode
Built-in memory for 16,000 positions
Built-in 200mA polymer battery
SMS tracking on cellphone with Google Map link
Absolute street address by SMS
Web server, free PC tracking soft, mobile phone APP

Warranty:

All products have been strictly quality checked in house before packing
All products have been well packed before shipping
One year warranty is provided for all models, we will bear maintenance cost during warranty

Delivery:

Sample and small order will be delivered within 2-3 working days after the receipt of payment
For order over 500 pieces or customized order, lead time will be 5-7 days after the receipt of payment
Please contact our sales to make sure the current inventory

It is our newly designed plug-and-play function OBD tracker

It could read OBD parameters from car ECU and GPS tracking for car location

All data will be transmitted to the backend server for remote diagnostic and tracking purpose

DIM: 64.5x50x27mm

Weight: 60g

Network: GSM/GPRS

Band: 850/900/1,800/1,900MHz

GPS sensitivity: -165dBm

GPS accuracy: 5m

Backup battery: chargeable 3.7V, 200mAh Li-ion battery

Storage temperature: -40 to +85°C

Operating temperature: -20 to +70°C

12-24V cars, vehicles, fleet management

SAE J1850 PWM

SAE J1850 VPW

ISO 9141-2

ISO 14230-4 (KWP2000-5bps)

ISO 14230-4 (KWP2000-fast)

ISO 15765-4 (CAN500-11BIT)

ISO 15765-4 (CAN500-29-bit)

ISO 15765-4 (CAN250-11-bit)

ISO 15765-4 (CAN250-29-bit)

Vehicle OBD II tracker (9-40V)

Location based service (LBS) + GPS double real-time tracking solution monitor

SOS panic button

Geo-fence, movement, over-speed alarms, low-battery, ext, power off alarm

Alarms under ARM: shock/ACC alarms

Request for OBD data by SMS:

Fuel measurement
Fuel consumption
Mileage
Speed
Engine status
Diagnostic trouble codes

Trouble and maintenance notification

Multi power-saving modes:

Sleep by time/shock sensor
Deep sleep
Awake at specific time

Saves GPRS traffic mode

Built-in memory for 16,000 positions

Built-in 200mA polymer battery

SMS tracking on cellphone with Google Map link

Absolute street address by SMS

Web server, free PC tracking soft, mobile phone APP

Fuel measurement

Fuel consumption

Mileage

Speed

Engine status

Diagnostic trouble codes

Sleep by time/shock sensor

Deep sleep

Awake at specific time

All products have been strictly quality checked in house before packing

All products have been well packed before shipping

One year warranty is provided for all models, we will bear maintenance cost during warranty

Sample and small order will be delivered within 2-3 working days after the receipt of payment

For order over 500 pieces or customized order, lead time will be 5-7 days after the receipt of payment

Please contact our sales to make sure the current inventory
