Product Description

How does the GPS tracker work:

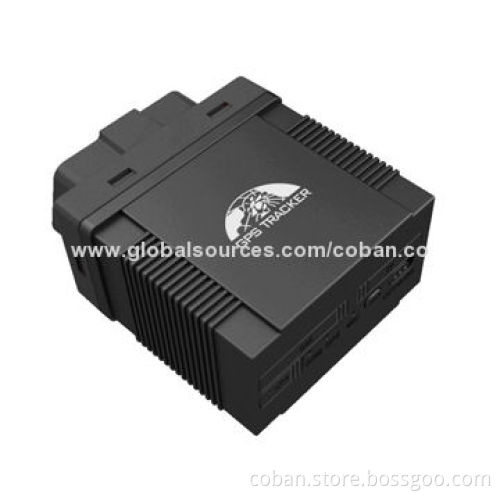

It is our newly designed plug-and -play function OBD tracker
It could read OBD parameters from car ECU and GPS tracking for car location
All data will be transmit to the backend server for remote diagnostic and tracking purpose

Content specifications:

Dimensions: 64.5 x 50 x 27mm
Weight: 60g
Network: GSM/GPRS
Band: 850/900/1,800/1,900MHz
GPS sensitivity: -165dBm
GPS accuracy: 5m
Backup battery: chargeable 3.7V, 200mAh Li-battery
Storage temperature: -40 to +85°C
Operating temperature:-20 to +70°C

Applying directions:

12-24V cars, vehicles, fleet management

The product supports existing OBD protocol:

SAE J1850 PWM
SAE J1850 VPW
ISO 9141-2
ISO 14230-4 (KWP2000-5BPS)
ISO 14230-4 (KWP2000-FAST)
ISO 15765-4 (CAN500-11BIT)
ISO 15765-4 (CAN500-29BIT)
ISO 15765-4 (CAN250-11BIT)
ISO 15765-4 (CAN250-29BIT)

Main features:

Vehicle OBD II tracker (9-40V)
Location based service (LBS) + GPS double real-time tracking solution monitor
SOS panic button
Geo-fence, movement, over-speed alarms, low-battery, ext power-off alarm
Alarms under ARM: shock/ACC alarms
Request for OBD data by SMS:
- Fuel measurement
- Fuel consumption
- Mileage
- Speed
- Engine status
- Diagnostic trouble codes
Trouble and maintenance notification
Multi power-saving modes:
- Sleep by time/shock sensor
- Deep sleep
- Awake at specific time
Saves GPRS traffic mode
Built-in memory for 16,000 positions
Built-in 200mA polymer battery
SMS tracking on cellphone with Google Map link
Absolute street address by SMS
Web server, free PC tracking soft, mobile phone APP

Warranty:

All products have been strictly quality checked in house before packing
All products have been well packed before shipping
One-year warranty is provided for all models, we will bear maintenance cost during warranty

Delivery:

Sample and small order will be delivered within 2-3 working days after the receipt of payment
For order over 500 pieces or customized order, lead time will be 5-7 days after the receipt of payment, please contact our sales to make sure the current inventory
