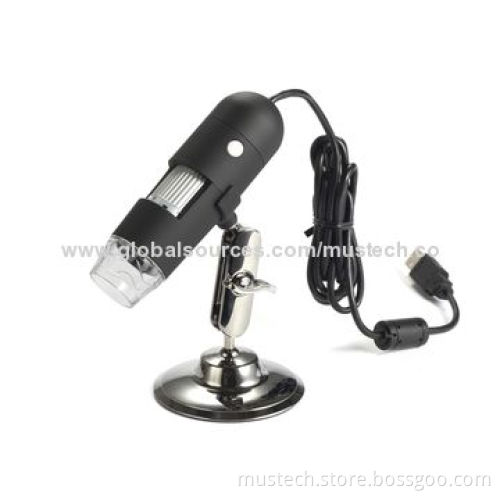

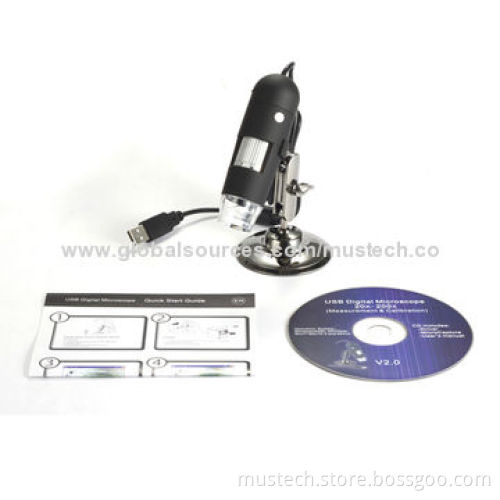

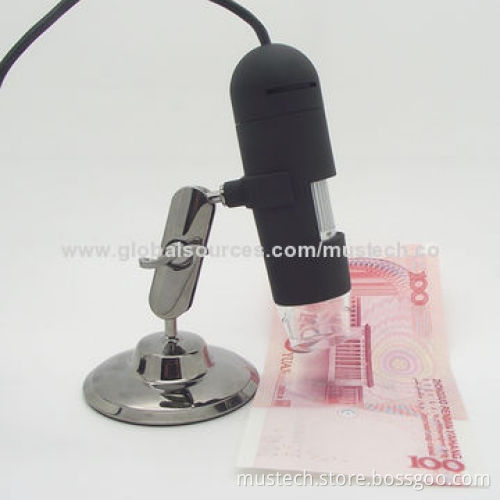

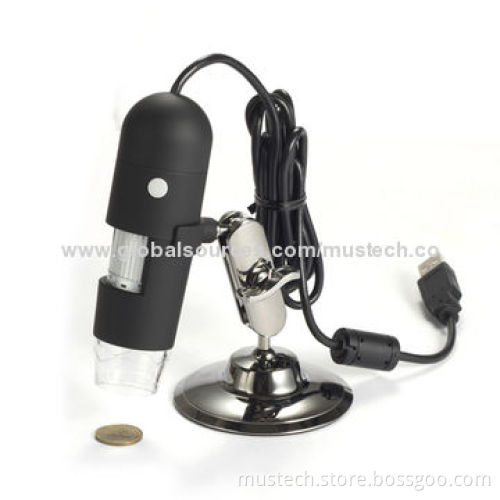

2M 200x USB Digital Microscope with 8 LEDs

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Overview:

The 2MP 200x USB digital microscope is a high-tech while easy to use digital microscope
With this unit you may see a unique and bigger world

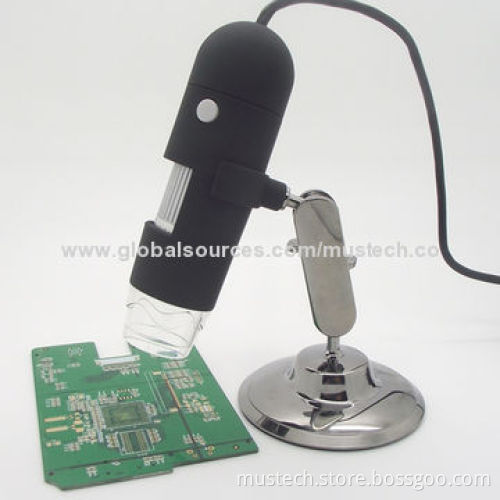

Applicable in many fields such as visual inspection on electronic components, and materials in a full range of uses, beauty shop and education
Its 2MP image sensor presents vivid and sharp amazing image
8pcs LEDs with brightness adjustable are good for any inspection environment
The measurement software can help you to measure tiny objects easily and precisely (as small as 0.001mm)
All those excellent features make it a good aid for your daily inspection on tiny objects

Major features:

Specifications:

Image sensor: 2 MP (interpolated to 5MP)
Focus range: manual focus from 10 to 500mm
Frame rate: maximum 30fps under 600 lux brightness
Magnification ratio: 10 to 200x
Light source: 8pcs LED (adjustable by control wheel)
Still capture resolutions: 2560x2048 (5MP), 2000x1600, 1600x1280 (2MP), 1280x1024, 1024x960, 1024x768, 800x600, 640x480, 352x288, 320x240 pixels
Video capture resolutions: 2560x2048 (5MP), 2000x1600, 1600x1280 (2MP), 1280x1024, 1024x960, 1024x768, 800x600, 640x480, 352x288, 320x240 pixels
Frame rate: maximum 30fps under 600 lux brightness
Video format: AVI
Photo format: JPEG or BMP
PC interface: USB2.0
Power source: 5V DC from USB port
Operating system: Windows 2000/XP/Vista/Win7/Win8, Mac OS X 10.6 or above
OSD languages: English, German, Spanish, Korean, French, Russian
Bundle software: Micro-capture with measurement and calibration function
Working temperatures: -20-60°C
Size: 110 x 33mm
