Hall Effect Voltage Sensor with 20 to 10,000Hz Bandwidth and 4mA Offset Current

Get Latest Price

Payment Type:: T/T 100% before massive production

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T 100% before massive production

Product Description

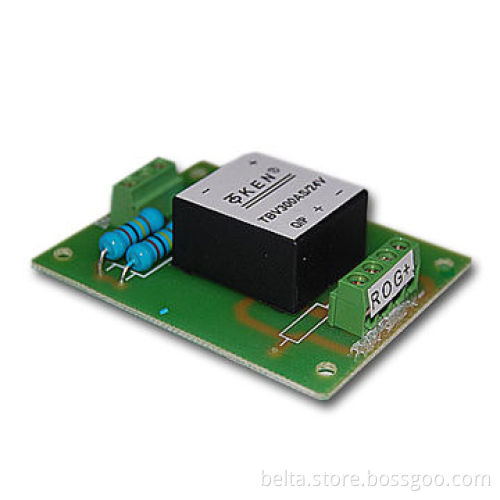

The TBV-AD series voltage sensor is a closed loop device basedon the measuring principle of the hall effect with a galvanicisolation between primary and secondary circuit

It provides accurate electronic measurement of DC, AC or pulsedvoltages

Electrical data:

TBV50AD, TBV100AD, and TBV200AD

TBV300AD, TBV400AD, and TBV500AD

Rated output: 50, 100, 200, 300, 400, 500V AC

Measure range: 100, 200, 400, 600, 800, 1000V AC

Rated output DC: 4 to 20mA

Supply voltage: 24 ±5%V

Offset current: 4mA

Offset current drift: d±0.005mA/

Linearity: d0.5%fs

Response time: d20ms

Bandwidth: 20 to 10,000Hz

Galvanic isolation: 50Hz, 1min, and 2.5kV

Operating temperature: -40 to +85

Storage temperature: -40 to +125
