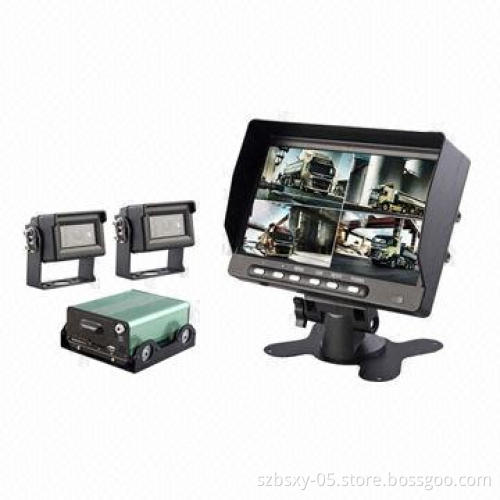

Car Mobile DVR Recorder System with Waterproof Night Vision Camera for Bus

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Hard disk is hardly to be damaged from shock by the particularshock-absorbing device design

4CH video and audio recording

Video formats: 1D1 (25fps) + 3CIF (25fps)

Alarm input: 4 alarm inputs, no alarm below 4V and high levelalarm above 4V

Compression: H.264

Data storage: max supports 2TB SATA HDD and 64GB SD card

Motion detection/timer switch/alarm recording

Dual shockproof

Supports USB port

Operating temperature range: -30 to 80°C

Power supply: 6/32V DC

Image device: 1/4 Sharp CCD

Resolution: 420TV lines

TV system: PAL/ NTSC

Effective pixels: 512 x 582/512 x 492 pixels

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Sync. system: internal

Horizontal sync. frequency: 15.625/15.734KHz

Vertical sync. frequency: 50/60Hz

Minimum illumination: 0 lux (infrared lamps on) 0.1 lux(day)/F1.2

Video output: 1.0vp-p, 75Ω

Gamma consumption: 0.45

AGC: automatic

S/N ratio: better than 48dB

White balance: automatic

Electronic shutter: 1/60 (NTSC)/1/50 (PAL) to 1/10,000seconds

BLC: automatic

Products idiomatical performance:

Small sized

Lens: 2.5mm

Lens angle: 120°

Infrared LED light: 9pcs

IR distance: 10m

Waterproof rate: IP68

Size: 7-inch color LCD monitor

Resolution: 800 x 3 (RGB) x 480

TV system: NTSC/PAL

Multiple menu languages: English, Dutch, French, Spanish,Russian, German, Italian

Monitors can be optional with loudspeaker or not, users canadjust sound on the control

Screen display mode can be switched the day mode and night modeby pressing button

Supports 2 cameras video simultaneous input

Supports 1 camera audio simultaneous input

Separate trigger control wire on second camera

Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops, in standbymode, monitor will turn on automatically when triggered and willswitch to second camera image, trigger end after shutdown

Working voltage: 12 to 32V
