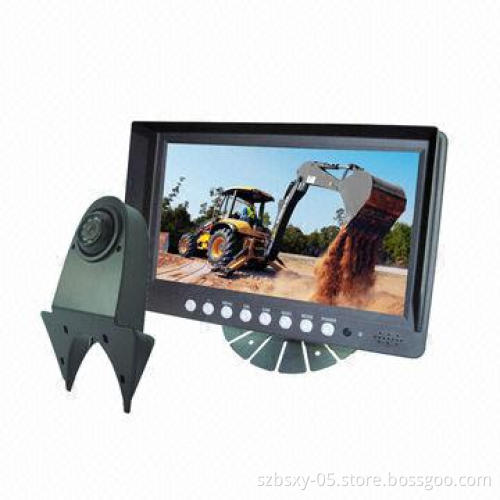

9-inch mobile monitor with backup cameras for trucks

Dimension: 9-inch color LCD monitor

TV system: NTSC/PAL auto

Resolution: 800 x 3 x (RGB) x 480 pixels

Brightness: 300cd/¡

Contrast: 300:1

Aspect ratio: 16:9

Viewing angles: U: 50°/D:60°, R/L:70°

Rating: 20,000 hours

Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian

With remote control

Monitors can be optional with loudspeaker or not, users canadjust sound on the control panel or remote control

Support 2 cameras video simultaneous input

Support 1cameras audio simultaneous input

Separate trigger control wire on second camera

Monitor will automatic switch-over the image to second cameraand back to the original mode when the trigger stops

In standby mode, monitor will turn on automatically whentriggered and will switch to second camera image

Working voltage: 12V

Working current: 300mA

Image device: 1/4-inch sharp CCD

Resolution: 420TV lines

Effective pixels: 512 x 582 pixels/512 x 492 pixels

Sensing area: 3.6 x 2.7mm

Scanning system: 2:1 interlace

Sync system: Internal

Frequency: 15.625/15.734KHz

Vertical sync frequency: 50/60Hz

Minimum illumination: 0Lux (infrared lamps on)0.1Lux(day)/F1.2

Video output: 1.0vp-p, 75 Ohms

Gamma consumption: 0.45

AGC: Auto

S/N ratio: Better than 48dB

White balance: auto

Electronic shutter: 1/60(NTSC)/1/50(PAL)~1/10,000 seconds

BLC: auto

Heavy-duty camera

Lens: 2.5mm

Lens angle: 120°

Infrared LED light: 12pcs

IR distance: 15m

Waterproof rate: IP69

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention andexplosion prevention

Current consumption: max. 200mA

Operating temperatures: -20-70°C, RH 95 maximum

Storage temperatures: -40-80°C, RH 95 maximum
