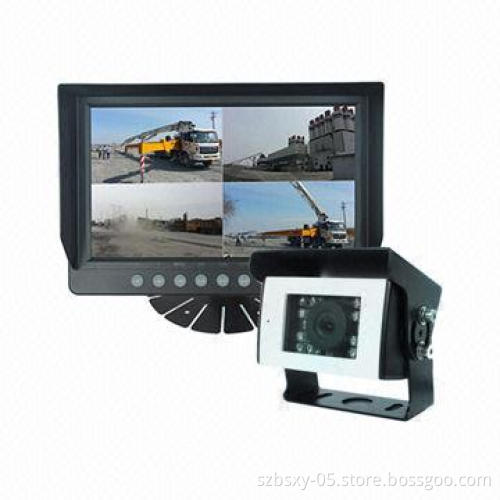

Rear-view System with 9-inch Digital Monitor and Car Camera for Heavy-duty Equipment

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Features:

Suitable for heavy-duty equipment
Products featured function
Dimension: 9-inch digital color LCD monitor
TV system: NTSC/PAL auto
Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German
Monitors can be optional with loudspeaker or not, users canadjust sound on the control
Screen display mode can be switched the day mode and night modeby pressing button
Supports 2 cameras video/audio simultaneous input
Normal or mirrored picture can be switched separately on eachcamera
Separate trigger control wire on each camera
Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops
The trigger delay time can be adjusted (0-4 seconds) on eachcamera
In standby mode, monitor will turn-on automatically whentriggered and will switch to the corresponding trigger cameraimage
Working voltage: 12-32V

Specifications:

Image device: 1/4-inch Sharp CCD
Resolution: 420TVL
TV system: PAL/NTSC
Effective pixels: 512 x 582/512 x 492 pixels
Sensing area: 3.6mm x 2.7mm
Scanning system: 2:1 interlace
Minimum illumination: 0 Lux (infrared lamps-on), 0.1 Lux(day)/F1.2
Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL)-1/10,000seconds
BLC: auto

Idiomatic performance:

Heavy-duty camera
Lens angle: 120°
Infrared LED light: 18 pieces
IR distance: 15m
Waterproof rate: IP69K
Shell material: aluminum alloy
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Power supply: 12V DC
Operating temperature: -20-70°C, 95 RH (maximum)
Storage temperature: -40-80°C, 95 RH (maximum)

Featured functions are optional:

Chip: Sony 420/480/520/560TVL
Mic: collects the environmental sound around the camera
Self heating: the cameras will entry the self-heating mode whenthe environmental working temperature is lower than 10 and it willautomatically stop heat

Suitable for heavy-duty equipment

Products featured function

Dimension: 9-inch digital color LCD monitor

TV system: NTSC/PAL auto

Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian, German

Monitors can be optional with loudspeaker or not, users canadjust sound on the control

Screen display mode can be switched the day mode and night modeby pressing button

Supports 2 cameras video/audio simultaneous input

Normal or mirrored picture can be switched separately on eachcamera

Separate trigger control wire on each camera

Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops

The trigger delay time can be adjusted (0-4 seconds) on eachcamera

In standby mode, monitor will turn-on automatically whentriggered and will switch to the corresponding trigger cameraimage

Working voltage: 12-32V

Image device: 1/4-inch Sharp CCD

Resolution: 420TVL

TV system: PAL/NTSC

Effective pixels: 512 x 582/512 x 492 pixels

Sensing area: 3.6mm x 2.7mm

Scanning system: 2:1 interlace

Minimum illumination: 0 Lux (infrared lamps-on), 0.1 Lux(day)/F1.2

Electronic shutter speed: 1/60 (NTSC)/1/50 (PAL)-1/10,000seconds

BLC: auto

Heavy-duty camera

Lens angle: 120°

Infrared LED light: 18 pieces

IR distance: 15m

Waterproof rate: IP69K

Shell material: aluminum alloy

Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention

Power supply: 12V DC

Operating temperature: -20-70°C, 95 RH (maximum)

Storage temperature: -40-80°C, 95 RH (maximum)

Chip: Sony 420/480/520/560TVL

Mic: collects the environmental sound around the camera

Self heating: the cameras will entry the self-heating mode whenthe environmental working temperature is lower than 10 and it willautomatically stop heat
