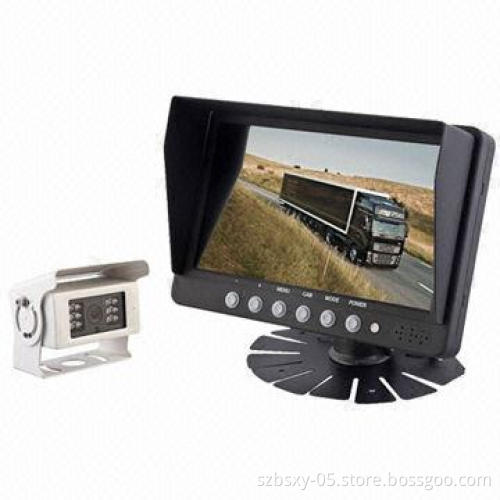

Camera rear-view system with night vision waterproof camera for trucks

Get Latest Price

Payment Type:: T/T in advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in advance

Product Description

Dimension: 9 inches digital color LCD monitor

TV systems: NTSC/PAL auto

Multiple menu languages: English, Dutch, French, Portuguese,Spanish, Russian and German

Monitors can be optional with loudspeaker or not, users canadjust sound on the control

Screen display mode can be switched the day mode & nightmode by pressing button

Support 2 cameras video/audio simultaneous input

Normal or mirrored picture can be switched separately on eachcamera

Separate trigger control wire on each camera

Monitor will automatic switch-over the image to thecorresponding triggered camera and back to the original mode whenthe trigger stops

The trigger delay time can be adjusted (0-4s) on eachcamera

In standby mode, monitor will turn on automatically whentriggered and will switch to the corresponding trigger cameraimage

Working voltages: 12-32V

Image device: 1/4 Sharp CCD

Resolution: 420TV lines

TV systems: PAL/NTSC

Effective pixels: 512 x 582 pixels/512 x 492 pixels

Sensing area: 3.6mm x 2.7mm

Scanning system: 2:1 interlace

Sync. System: Internal

Horizontal Sync. Frequencies: 15.625KHz/15.734KHz

Vertical Sync. Frequencies: 50/60Hz

Minimum illumination: 0Lux (Infrared lamps on) 0.1Lux(day)/F1.2

Video output: 1.0vp-p, 75Ohm

Gamma consumption: 0.45

AGC: Auto

S/N ratio: Better than 48dB

White balance: Auto

Electronic shutter: 1/60 (NTSC)/1/50(PAL) - 1/10,000seconds

BLC: Auto

Products idiomatic performance:

Heavy-duty camera
Lens angle: 120°
Infrared LED light: 12PCS
IR distance: 15m
Waterproof rate: IP69K
Shell material: aluminum alloy
Bracket material: iron
Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention
Current consumption: Max. 190mA
Power supply: DC 12V
Operating temperatures: -20 - 70°C, RH95 max
Storage temperatures: -40 - 80°C, RH95 max

Heavy-duty camera

Lens angle: 120°

Infrared LED light: 12PCS

IR distance: 15m

Waterproof rate: IP69K

Shell material: aluminum alloy

Bracket material: iron

Dust-proof, waterproof, hydrochloric acid prevention, explosionprevention

Current consumption: Max. 190mA

Power supply: DC 12V

Operating temperatures: -20 - 70°C, RH95 max

Storage temperatures: -40 - 80°C, RH95 max
