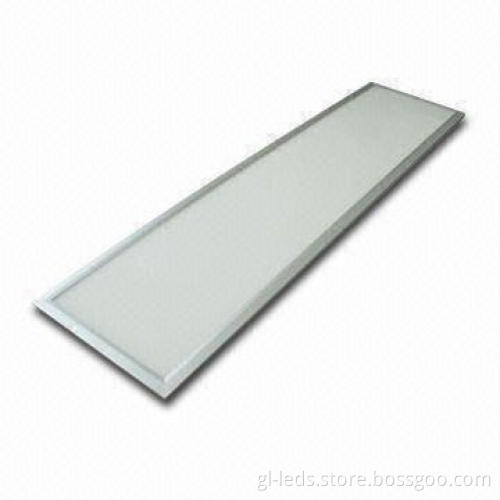

LED Panel Light with High-level Aluminum Edge, Easy to Install
  • LED Panel Light with High-level Aluminum Edge, Easy to Install
LED Panel Light with High-level Aluminum Edge, Easy to Install

LED Panel Light with High-level Aluminum Edge, Easy to Install

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • LED wavelength:
    • Red: 620 to 626nm
    • Green: 515 to 521nm
    • Blue: 465 to 471nm
  • LED types: 3528, 3535 and 5630 SMD
  • Technical parameters:
    • Ultra-thin: 12mm
    • Input voltages: 85 to 265V AC
    • Lumen of each LED (105mA): 32 to 34lm
    • Luminous flux (pure white): 5,313/3535 SMD and 7,041lm/5630 SMD
    • Dimensions: 300 x 1,200 x 12mm
    • Color temperatures: 5,500 to 7,000K
    • LED quantity: 220 pieces
    • With high-level aluminum edge, easy to install
    • Luminous efficacy: 89 to 117lm/W (the actual test data)
    • Ambient temperatures: -30 to 70°C
    • Colors: single or bi-color (RGB all are also available)
    • Light guide material: acrylic light guide board (guide light from four edges)
    • Long lifespan: more than 100,000 hours
    • Power: 70W
    • Beam angle: 120°
    • With CE, FCC, ETL and RoHS marks
    • Warranty: three years
    • Other sizes: 300 x 300 x 12, 300 x 600 x 12, 595 x 595 x 12, 600 x 600 x 12, 300 x 1,200 x 12 and 600 x 1,200 x 12mm
  • Advantages:
    • Adopts own-designed LED driver with high-power factor
    • Efficient heatsink system, to ensure the lighting long lifespan
    • High-efficiency, low heat and energy-saving
    • Environment-friendly, waterproof and UV-resistant
    • Safety level: low heat dissipation, solid-state, high-shock or vibration-resistant, no UV or IR radiation
    • Energy-efficient and high-brightness, saving up 50% energy consumption
    • With high CRI to insure a true color
    • With aluminum body to ensure heat dissipation and the same time the long lifespan of the LED panel light, adopts high light transmittance
  • Red: 620 to 626nm
  • Green: 515 to 521nm
  • Blue: 465 to 471nm
  • Ultra-thin: 12mm
  • Input voltages: 85 to 265V AC
  • Lumen of each LED (105mA): 32 to 34lm
  • Luminous flux (pure white): 5,313/3535 SMD and 7,041lm/5630 SMD
  • Dimensions: 300 x 1,200 x 12mm
  • Color temperatures: 5,500 to 7,000K
  • LED quantity: 220 pieces
  • With high-level aluminum edge, easy to install
  • Luminous efficacy: 89 to 117lm/W (the actual test data)
  • Ambient temperatures: -30 to 70°C
  • Colors: single or bi-color (RGB all are also available)
  • Light guide material: acrylic light guide board (guide light from four edges)
  • Long lifespan: more than 100,000 hours
  • Power: 70W
  • Beam angle: 120°
  • With CE, FCC, ETL and RoHS marks
  • Warranty: three years
  • Other sizes: 300 x 300 x 12, 300 x 600 x 12, 595 x 595 x 12, 600 x 600 x 12, 300 x 1,200 x 12 and 600 x 1,200 x 12mm
  • Adopts own-designed LED driver with high-power factor
  • Efficient heatsink system, to ensure the lighting long lifespan
  • High-efficiency, low heat and energy-saving
  • Environment-friendly, waterproof and UV-resistant
  • Safety level: low heat dissipation, solid-state, high-shock or vibration-resistant, no UV or IR radiation
  • Energy-efficient and high-brightness, saving up 50% energy consumption
  • With high CRI to insure a true color
  • With aluminum body to ensure heat dissipation and the same time the long lifespan of the LED panel light, adopts high light transmittance
