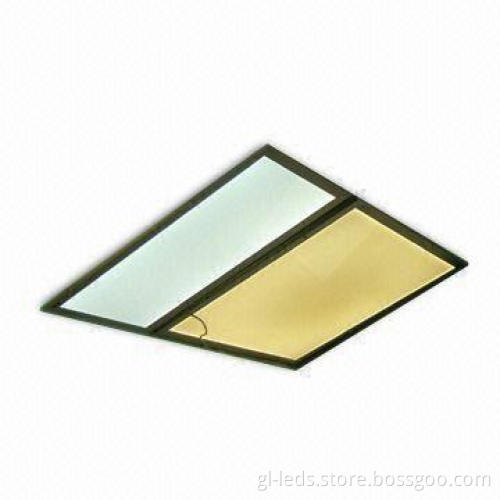

12mm LED Ceiling Panel Light with High-level Aluminum Edge, Easy to Install

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Features:

Luminous efficacy: 86 to 99lm/W (the actual test data)
LED type: 3528/3535/5630 SMD LEDs are available
Thickness of LED panel light: 12mm
Size for LED panel lamp: 300 x 600 x 12mm
LED panel light light-guide main material cover: acrylic light-guide board (guide light from four edges)
Color: single color, bi-color, RGB (various colors are available)
Input voltages: 85 to 265V AC
Power: 24W (3528 SMD LEDs LED panel light) and 30W (3535/5630 SMD LEDs LED light panel) available
LED quantity: 198 pieces and 110 pieces are available
Flux of pure white: 2,144lm/3528 SMD, 2,586lm/3535 SMD and 2,966lm/5630 SMD are available
LED panel light light-guide material: acrylic light-guide board (guide light from four edges)
Ambient temperature: -30 to 70°C
Lifetime: ≥100,000 hours
Led panel light with beam angle: 120°
Installation of LED panel lamp: convenient and efficient, both catenary and push-in type are available
Other sizes: 12 x 300 x 300, 12 x 300 x 600, 12 x 595 x 595, 12 x 600 x 600, 12 x 300 x 1,200 and 12 x 600 x 1,200mm all are available
With CE, FCC, RoHS and ETL marks
With 3 years quality warranty

Our service:

Your inquiry related to our products or prices will be replied in 24 hours
Well-trained and experienced staffs to answer all your enquirers in fluent English
OEM and ODM, any your customized lightings we can help you to design and put into product
Distributorship are offered for your unique design and some our current models
Protection of your sales area, ideas of design and all your private information

Luminous efficacy: 86 to 99lm/W (the actual test data)

LED type: 3528/3535/5630 SMD LEDs are available

Thickness of LED panel light: 12mm

Size for LED panel lamp: 300 x 600 x 12mm

LED panel light light-guide main material cover: acrylic light-guide board (guide light from four edges)

Color: single color, bi-color, RGB (various colors are available)

Input voltages: 85 to 265V AC

Power: 24W (3528 SMD LEDs LED panel light) and 30W (3535/5630 SMD LEDs LED light panel) available

LED quantity: 198 pieces and 110 pieces are available

Flux of pure white: 2,144lm/3528 SMD, 2,586lm/3535 SMD and 2,966lm/5630 SMD are available

LED panel light light-guide material: acrylic light-guide board (guide light from four edges)

Ambient temperature: -30 to 70°C

Lifetime: ≥100,000 hours

Led panel light with beam angle: 120°

Installation of LED panel lamp: convenient and efficient, both catenary and push-in type are available

Other sizes: 12 x 300 x 300, 12 x 300 x 600, 12 x 595 x 595, 12 x 600 x 600, 12 x 300 x 1,200 and 12 x 600 x 1,200mm all are available

With CE, FCC, RoHS and ETL marks

With 3 years quality warranty

Your inquiry related to our products or prices will be replied in 24 hours

Well-trained and experienced staffs to answer all your enquirers in fluent English

OEM and ODM, any your customized lightings we can help you to design and put into product

Distributorship are offered for your unique design and some our current models

Protection of your sales area, ideas of design and all your private information
