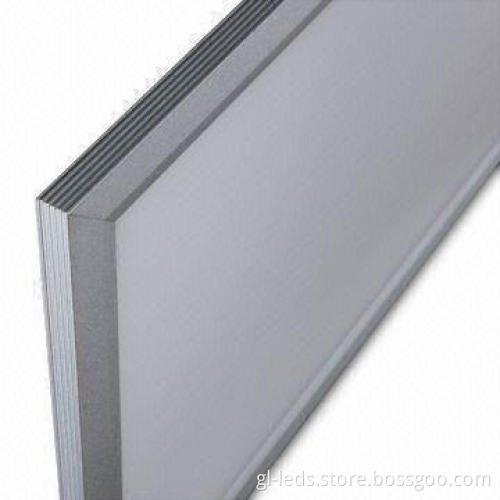

Square LED Ceiling Panel Lighting with High-level Aluminum Edge, 1,200mm Length and 12mm Ultra-thin
  • Square LED Ceiling Panel Lighting with High-level Aluminum Edge, 1,200mm Length and 12mm Ultra-thin
Square LED Ceiling Panel Lighting with High-level Aluminum Edge, 1,200mm Length and 12mm Ultra-thin

Square LED Ceiling Panel Lighting with High-level Aluminum Edge, 1,200mm Length and 12mm Ultra-thin

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • LED wavelength:
      • Red: 620 to 626nm
      • Green: 515 to 521nm
      • Blue: 465 to 471nm
    • LED type: 3528, 3535 and 5630 SMD LED
    • Ultra-thin: 12mm
    • Input voltages: 85 to 265V AC
    • Luminous flux of each LED 105mA: 32 to 34lm
    • Luminous flux (pure white): 5,313, 3535 SMD7
    • Dimensions: 300 x 1,200 x 12mm
    • Color temperatures: 5,500 to 7,000K
    • LED quantity: 220 pieces
    • Luminous flux efficacy: 89 to 117lm/W (actual test data)
    • Ambient temperatures: -30 to 70°C
    • Color range: single color, bi-color and RGB
    • Light guide material: acrylic light guide board (guide light from four edges)
    • Long lifespan: more than 100,000 hours
    • Power: 70W
    • Beam angle: 120°
    • With CE, FCC, ETL and RoHS marks
    • Dimensions: other sizes, 300 x 300 x 12, 300 x 600 x 12, 595 x 595 x 12, 600 x 600 x 12, 300 x 1,200 x 12 and 600 x 1,200 x 12mm
  • Features:
    • Adopts own-designed LED driver with high power factor
    • Efficient heat sink system, to ensure the lighting long lifespan
    • High-efficiency, low-heat and energy-saving
    • Eco-friendly, waterproof and UV-resistant
    • Safety level: low-heat dissipation, solid state, high-shock or vibration-resistant and no UV or IR radiation
  • LED wavelength:
    • Red: 620 to 626nm
    • Green: 515 to 521nm
    • Blue: 465 to 471nm
  • LED type: 3528, 3535 and 5630 SMD LED
  • Ultra-thin: 12mm
  • Input voltages: 85 to 265V AC
  • Luminous flux of each LED 105mA: 32 to 34lm
  • Luminous flux (pure white): 5,313, 3535 SMD7
  • Dimensions: 300 x 1,200 x 12mm
  • Color temperatures: 5,500 to 7,000K
  • LED quantity: 220 pieces
  • Luminous flux efficacy: 89 to 117lm/W (actual test data)
  • Ambient temperatures: -30 to 70°C
  • Color range: single color, bi-color and RGB
  • Light guide material: acrylic light guide board (guide light from four edges)
  • Long lifespan: more than 100,000 hours
  • Power: 70W
  • Beam angle: 120°
  • With CE, FCC, ETL and RoHS marks
  • Dimensions: other sizes, 300 x 300 x 12, 300 x 600 x 12, 595 x 595 x 12, 600 x 600 x 12, 300 x 1,200 x 12 and 600 x 1,200 x 12mm
  • Red: 620 to 626nm
  • Green: 515 to 521nm
  • Blue: 465 to 471nm
  • Adopts own-designed LED driver with high power factor
  • Efficient heat sink system, to ensure the lighting long lifespan
  • High-efficiency, low-heat and energy-saving
  • Eco-friendly, waterproof and UV-resistant
  • Safety level: low-heat dissipation, solid state, high-shock or vibration-resistant and no UV or IR radiation
