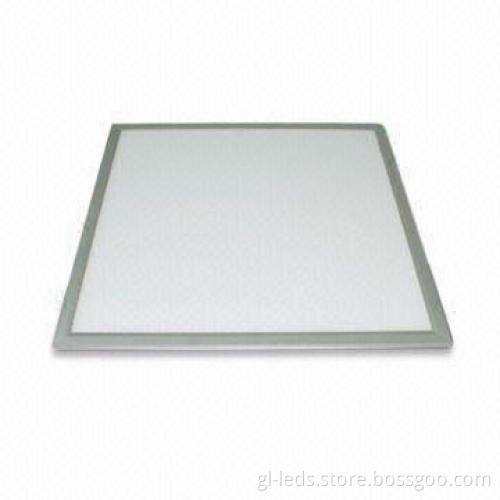

Energy-saving LED Panel Light with Super Thin and High-level Aluminum Edge, Easy to Install

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Rational structure, modern design, scientific design of heat dissipation and optics

High-level aluminum edge, which is better for the heat dissipation of LED itself and keeps a longer lifespan

Wide output voltage, no harsh glare, activated without delay and high-power factor

Luminous depreciation: Eyesight protection

Used for long time work and study circumstances

Lighting effect of the whole panel light is 80lm/W, advanced lighting feature

Compared with traditional fluorescent lamp, this LED panel saves over three times electricity in the same luminance intensity

Self-design and strictly testing LED driver

Light transmission of LGP (light guide plate) is 85%

More even light and higher luminous

LED panel light: 3528/3535/5630 SMD LED are available

Thickness: 12mm

Dimensions: 600 x 600 x 12mm

Light guide main material cover: acrylic light guide board (guide light from four edges)

Colors: single/bi-color and RGB

Various colors are available

Input voltages: 85 to 265V AC

Power: 40W (3528 SMD LED LED panel light) and 60W (3535/5630 SMD LED LED panel light)

Panel light LED quantity: 396/220 pieces are available

Luminous efficacy: 87 to 104lm/W

Luminous flux (pure white): 4,161lm/3528, 5,275lm/3535 and 5,866lm/5630 SMD

Ambient temperatures: -30 to 70℃

Lifespan: ≥100,000 hours

Beam angle: 120°

Installation of LED panel: convenient and efficient, both centenary/push-in type are available

Other dimensions: 12 x 300 x 300, 12 x 300 x 600, 12 x 595 x 595, 12 x 600 x 600, 12 x 300 x 1,200, and 12 x 600 x 1,200mm all are available

With CE, FCC, RoHS and ETL marks

With three years quality warranty
