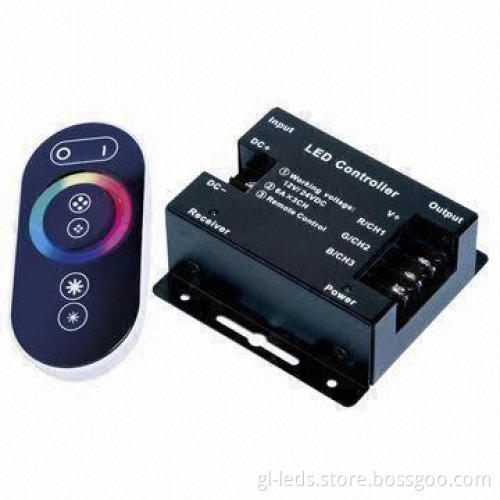

RF Touch RGB Controller with 216W/432W Output Power
  • RF Touch RGB Controller with 216W/432W Output Power
  • RF Touch RGB Controller with 216W/432W Output Power
RF Touch RGB Controller with 216W/432W Output Power
RF Touch RGB Controller with 216W/432W Output Power
RF Touch RGB Controller with 216W/432W Output Power
RF Touch RGB Controller with 216W/432W Output Power

RF Touch RGB Controller with 216W/432W Output Power

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Advantages:
    • Adopt touch mode, no mechanical wear, can be touched unlimited times
    • Adopt the ocular selection of color wheel, can see what you get
    • Ocular and convenient
    • Can be matched by input voltage of DC 12 to 24V and input polarity protection function
    • Adopt the newest PWM control technology, good representation, no flicker
    • Adopt tube MOS, which is the high power dimmable control
    • Strong power-driven load with the maximum current of 18A, stable performance
    • Controlled by wireless remote controller with no direction
    • Remote distant: more than 20m
    • Low power consumption and long standby time
    • Multi-type remembering functions, including color, modes, speed and brightness
    • Novelty and elegant appearance
    • Suitable for inner house and business
  • Specifications:
    • Controller:
      • Input voltage: DC 12 to 24V
      • Maximum current: 6A x 3CH
      • Output channel: 3CH
      • Output power: 216W/432W
      • Control mode: RF
      • Output mode: common anode
      • Change mode: 18 (7 static color modes and 11 dynamic color modes) 1 color wheel(64 static colors)
      • Output control mode: PWM
      • Grey steps: 256
      • IP: IP20
      • Circuit protection: input polarity
      • Working temperature: -20 to 60°C
      • Dimensions: 83 x 78 x 33mm
      • Packing size: 206.5 x 136 x 43mm
      • Weight: 179g
    • Remote controller:
      • Input voltage: 4.5V
      • Control mode: RF
      • Remote distant: >25m
      • Standby power: 0.08mW
      • Buttons: six buttons and one color wheel
      • Working temperature: -20 to 60°C
  • Adopt touch mode, no mechanical wear, can be touched unlimited times
  • Adopt the ocular selection of color wheel, can see what you get
  • Ocular and convenient
  • Can be matched by input voltage of DC 12 to 24V and input polarity protection function
  • Adopt the newest PWM control technology, good representation, no flicker
  • Adopt tube MOS, which is the high power dimmable control
  • Strong power-driven load with the maximum current of 18A, stable performance
  • Controlled by wireless remote controller with no direction
  • Remote distant: more than 20m
  • Low power consumption and long standby time
  • Multi-type remembering functions, including color, modes, speed and brightness
  • Novelty and elegant appearance
  • Suitable for inner house and business
  • Controller:
    • Input voltage: DC 12 to 24V
    • Maximum current: 6A x 3CH
    • Output channel: 3CH
    • Output power: 216W/432W
    • Control mode: RF
    • Output mode: common anode
    • Change mode: 18 (7 static color modes and 11 dynamic color modes) 1 color wheel(64 static colors)
    • Output control mode: PWM
    • Grey steps: 256
    • IP: IP20
    • Circuit protection: input polarity
    • Working temperature: -20 to 60°C
    • Dimensions: 83 x 78 x 33mm
    • Packing size: 206.5 x 136 x 43mm
    • Weight: 179g
  • Remote controller:
    • Input voltage: 4.5V
    • Control mode: RF
    • Remote distant: >25m
    • Standby power: 0.08mW
    • Buttons: six buttons and one color wheel
    • Working temperature: -20 to 60°C
  • Input voltage: DC 12 to 24V
  • Maximum current: 6A x 3CH
  • Output channel: 3CH
  • Output power: 216W/432W
  • Control mode: RF
  • Output mode: common anode
  • Change mode: 18 (7 static color modes and 11 dynamic color modes) 1 color wheel(64 static colors)
  • Output control mode: PWM
  • Grey steps: 256
  • IP: IP20
  • Circuit protection: input polarity
  • Working temperature: -20 to 60°C
  • Dimensions: 83 x 78 x 33mm
  • Packing size: 206.5 x 136 x 43mm
  • Weight: 179g
  • Input voltage: 4.5V
  • Control mode: RF
  • Remote distant: >25m
  • Standby power: 0.08mW
  • Buttons: six buttons and one color wheel
  • Working temperature: -20 to 60°C
