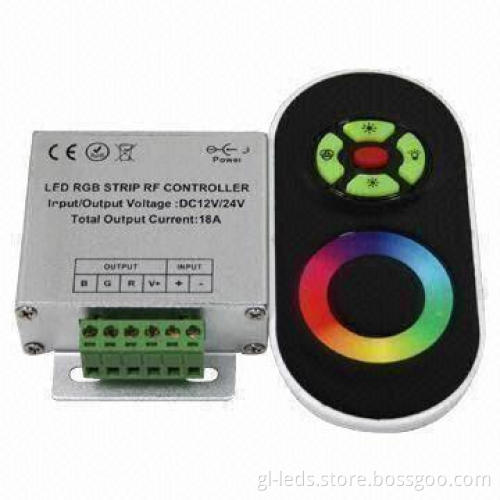

RF Wireless Touch LED Controller with 12 to 24V DC Input and 6A x 3CH Maximum Output

RF Wireless Touch LED Controller with 12 to 24V DC Input and 6A x 3CH Maximum Output

Get Latest Price

Payment Type:: TT, Cash

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Cash

Product Description

Specifications:

Maximum output power: 216W
Supply voltages: 12 to 24V DC
Frequency: 433MHz

Operating instructions:

Touch on/off button, can switch on/off RGB strip
Slide color ring, RGB strip will show same color
Increasing color button can adjust current color to most vivid, decreasing color button is contrary, until pure white
Can adjust brightness by dimming function, to brighten and dim the light
Gradual change mode: touch on button again under monochome mode condition, RGB strip will be changed into gradual change mode
Increasing color button will speed up color changing, decreasing color button will slowdown
Hopping mode: under gradual change mode condition, touch on button, RGB strip will be changed into hopping mode, increasing color button will speed up hopping, decreasing color button will slowdown
Under gradual change or hopping mode, touching on switch will change one to other, close RGB strip and restart it if you want to enter monochrome mode

Attentions:

Input voltage of remote control must be same as RGB strips
Matching color of output wiring when connecting
When color doesn't match, it displays blue when touching green or displays green when touching blue, please check whether wiring is correct, if not, exchange blue and green into their right connections

Includes:

LED controller x 1
Touch panel remote controller x 1
English user's guide
Sizes:
- LED controller: 8.8 x 7 x 2.8cm
- Remote controller:
- Type A and B: 11.2 x 5.5 x 2cm
- Type C: Ø6.8 x (H) 3.2cm
Net weight:
- Type A and B: 172g
- Type C: 155g

Maximum output power: 216W

Supply voltages: 12 to 24V DC

Frequency: 433MHz

Touch on/off button, can switch on/off RGB strip

Slide color ring, RGB strip will show same color

Increasing color button can adjust current color to most vivid, decreasing color button is contrary, until pure white

Can adjust brightness by dimming function, to brighten and dim the light

Gradual change mode: touch on button again under monochome mode condition, RGB strip will be changed into gradual change mode

Increasing color button will speed up color changing, decreasing color button will slowdown

Hopping mode: under gradual change mode condition, touch on button, RGB strip will be changed into hopping mode, increasing color button will speed up hopping, decreasing color button will slowdown

Under gradual change or hopping mode, touching on switch will change one to other, close RGB strip and restart it if you want to enter monochrome mode

Input voltage of remote control must be same as RGB strips

Matching color of output wiring when connecting

When color doesn't match, it displays blue when touching green or displays green when touching blue, please check whether wiring is correct, if not, exchange blue and green into their right connections

LED controller x 1

Touch panel remote controller x 1

English user's guide

Sizes:
