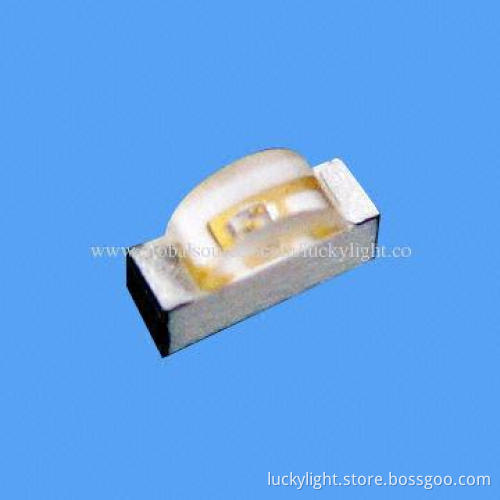

White SMD LED, 2mm, 1204 Package with Right Lens Pure Green, LED Chip

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Chip material: AIGaInP
Lens color: water clear
Source color: pure green
Absolute maximum ratings at Ta = 25°C
Parameter power dissipation symbol PD 110mW
Peak forward current (1/10 duty cycle, 0.1ms pulse width) IFP 100mA
Continuous forward current: 25mA
Reverse voltage: 5V
Forward voltage: minimum 1.6V type 2V maximum 2.4
Electrostatic discharge: 400V
Operating temperature range: -40 to 80°C
Storage temperature range: -40 to 85°C
Soldering temperature: 260°C for 5 seconds

Description:

The S11P SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained
Besides, lightweight makes them ideal for miniature applications and more

Chip material: AIGaInP

Lens color: water clear

Source color: pure green

Absolute maximum ratings at Ta = 25°C

Parameter power dissipation symbol PD 110mW

Peak forward current (1/10 duty cycle, 0.1ms pulse width) IFP 100mA

Continuous forward current: 25mA

Reverse voltage: 5V

Forward voltage: minimum 1.6V type 2V maximum 2.4

Electrostatic discharge: 400V

Operating temperature range: -40 to 80°C

Storage temperature range: -40 to 85°C

Soldering temperature: 260°C for 5 seconds

The S11P SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained

Besides, lightweight makes them ideal for miniature applications and more
