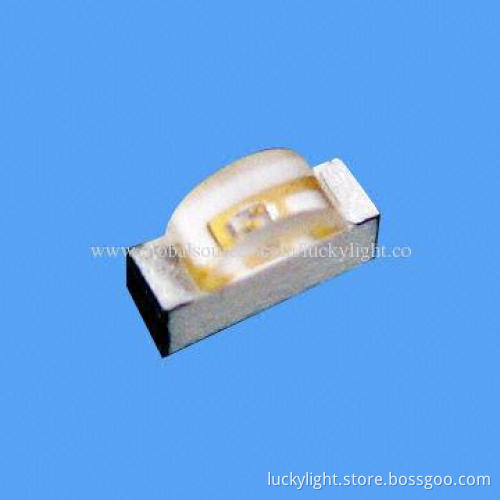

1204 SMD LED, Package with Right Lens Super Yellow Chip LED, 5V Reverse Voltage

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Chip material: AIGaInP

Lens color: water clear

Source color: super amber

Absolute maximum ratings at Ta = 25°C

Parameter power dissipation symbol PD 110mW

Peak forward current (1/10 duty cycle, 0.1ms pulse width) IFP 100mA

Continuous forward current: 25mA

Reverse voltage: 5V

Forward voltage: 1.6V type, 2V, 2.4

Electrostatic discharge: 400V

Operating temperature range: -40 to 80°C

Storage temperature range: -40 to 85°C

Soldering temperature: 260°C for 5 seconds

Description:

The S11P SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained
Besides, lightweight makes them ideal for miniature

The S11P SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained

Besides, lightweight makes them ideal for miniature
