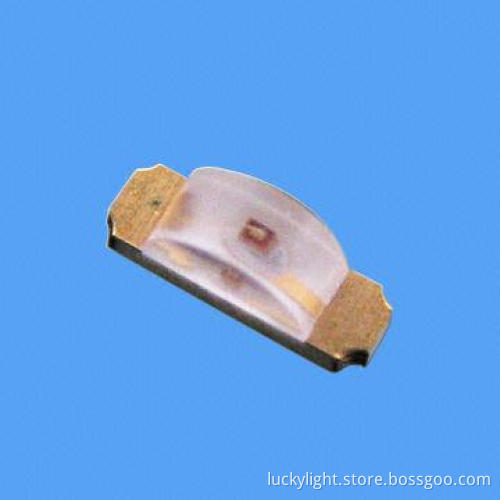

SMD LED with 60mW Power Dissipation and GaAlAs Chip Material
  • SMD LED with 60mW Power Dissipation and GaAlAs Chip Material
  • SMD LED with 60mW Power Dissipation and GaAlAs Chip Material
SMD LED with 60mW Power Dissipation and GaAlAs Chip Material
SMD LED with 60mW Power Dissipation and GaAlAs Chip Material

SMD LED with 60mW Power Dissipation and GaAlAs Chip Material

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Package in 8mm tape on 7-inch diameter reel
    • Compatible with automatic placement equipment
    • Compatible with infrared and vapor phase re-flow solderprocess
    • Mono-color type
    • The product itself will remain within RoHS compliantversion
    • The S110 SMD LED is much smaller than lead frame typeComponents, thus enable
    • smaller board size, higher packing density, reduced storagespace and finally smaller
    • equipment to be obtained
  • Applications:
    • Besides, lightweight makes them ideal for miniatureapplications, and more
    • Automotive: backlighting in dashboard and switch
    • Telecommunication: indicator and backlighting in telephone andfax
    • Flat backlight for LCD, switch and symbol
    • General use
    • Indoor signboard use
    • Chip material: GaAlAs
    • Lens color: water clear
    • Source color: super red
    • Power dissipation: 60mW
    • Peak forward current: (1/10 duty cycle, 0.1ms pulse width):100mA
    • Forward current: 25mA
    • Reverse voltage: 5V
    • Operating temperature: -40 to 80°C
    • Storage temperature: -40 to 85°C
    • Soldering temperature: 260°C for 5 seconds
    • Luminous intensity: 8-15mcd at 20mA (note 1)
    • Viewing angle: 2¸1/2-120° at 20mA (note 2)
    • Peak emission wavelength: 660nm at 20mA
    • Dominant wavelength: 640nm at 20mA (note 3)
    • Spectral line half-width: 45nm at 20mA
    • Forward voltage: 1.60, 2.00, or 2.40V at 20mA
    • Reverse current: 10¼A at 5V
  • Package in 8mm tape on 7-inch diameter reel
  • Compatible with automatic placement equipment
  • Compatible with infrared and vapor phase re-flow solderprocess
  • Mono-color type
  • The product itself will remain within RoHS compliantversion
  • The S110 SMD LED is much smaller than lead frame typeComponents, thus enable
  • smaller board size, higher packing density, reduced storagespace and finally smaller
  • equipment to be obtained
  • Besides, lightweight makes them ideal for miniatureapplications, and more
  • Automotive: backlighting in dashboard and switch
  • Telecommunication: indicator and backlighting in telephone andfax
  • Flat backlight for LCD, switch and symbol
  • General use
  • Indoor signboard use
  • Chip material: GaAlAs
  • Lens color: water clear
  • Source color: super red
  • Power dissipation: 60mW
  • Peak forward current: (1/10 duty cycle, 0.1ms pulse width):100mA
  • Forward current: 25mA
  • Reverse voltage: 5V
  • Operating temperature: -40 to 80°C
  • Storage temperature: -40 to 85°C
  • Soldering temperature: 260°C for 5 seconds
  • Luminous intensity: 8-15mcd at 20mA (note 1)
  • Viewing angle: 2¸1/2-120° at 20mA (note 2)
  • Peak emission wavelength: 660nm at 20mA
  • Dominant wavelength: 640nm at 20mA (note 3)
  • Spectral line half-width: 45nm at 20mA
  • Forward voltage: 1.60, 2.00, or 2.40V at 20mA
  • Reverse current: 10¼A at 5V
