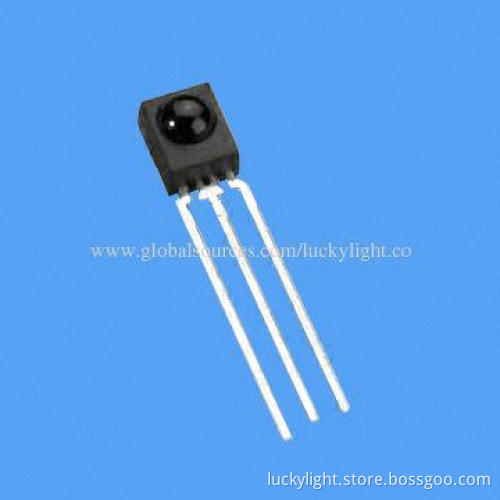

Infrared Remote Control Receiver Module Photodiode, -40 to +85°C Operating Temperature

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Specifications:

Applications:

High-photo sensitivity

Improved shielding against electrical field disturbance

Low-power consumption

Suitable burst length: ≥10 cycles/burst

TTL and CMOS compatibility

Improved immunity against ambient light

Internal filter for PCM frequency

Long reception distance: 14m

Compliant with the RoHS Directive

Supply voltage: 0 to 6V

Operating temperature: -40 to +85°C

Storage temperature: -40 to 100°C

Soldering temperature: 260°C for 5 seconds

Consumption current: 1.3mA

BPF center frequency: 38kHz

Peak wavelength: 940nm

Reception distance: 14m

Infrared applied systems

Light detecting portion of remote controls

AV instrument such as audio, TV, VCR, CD and MD

CATV set-top boxes

The other equipment with wireless remote controls

Home appliance such as air conditioner and fans

Multimedia equipment
