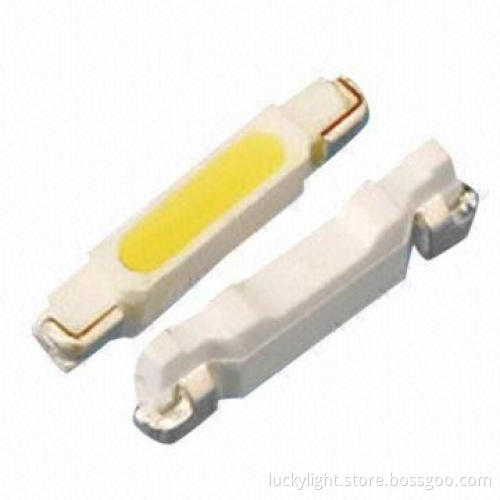

SMD 020 LED Components with 1,200mcd, 3.8 x 1.2 x 0.6mm, Apply to LCD Backlight
  • SMD 020 LED Components with 1,200mcd, 3.8 x 1.2 x 0.6mm, Apply to LCD Backlight
SMD 020 LED Components with 1,200mcd, 3.8 x 1.2 x 0.6mm, Apply to LCD Backlight

SMD 020 LED Components with 1,200mcd, 3.8 x 1.2 x 0.6mm, Apply to LCD Backlight

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Power dissipation: 95mW
    • Peak forward current: 100mA
    • Forward current: 25mA
    • Reverse voltage: 5V
    • Deleting liner from 25°C: 0.3mA
    • Luminous intensity: 1,000 and 1,200mcd
    • Viewing angle: 120°
    • Forward voltage: 2.8 to 3.8V
    • Dimensions: 3.8 x 1.2 x 0.6mm
    • Certificate: RoHS
  • Features:
    • Due to the packing design, the SMD LED has wide viewing angle,low-power consumption, which make the LED ideal for light guideapplication
    • Smaller than lead frame type components, thus enable smallerboard size, higher packing density, reduces storage space
    • Utilizing advanced EnGiNE chip technology
    • Lightweight makes it ideal for miniature application andmore
  • Applications:
    • Automotive: backlighting in dashboards and switches
    • Telecommunications: indicators and backlighting in telephonesand faxes
    • Flat back lights for LCDs, switches and symbols
    • Indoor signboard uses
    • LCD back lights
    • Indicators
    • Illuminations
    • Mobile phones
    • General uses
  • Power dissipation: 95mW
  • Peak forward current: 100mA
  • Forward current: 25mA
  • Reverse voltage: 5V
  • Deleting liner from 25°C: 0.3mA
  • Luminous intensity: 1,000 and 1,200mcd
  • Viewing angle: 120°
  • Forward voltage: 2.8 to 3.8V
  • Dimensions: 3.8 x 1.2 x 0.6mm
  • Certificate: RoHS
  • Due to the packing design, the SMD LED has wide viewing angle,low-power consumption, which make the LED ideal for light guideapplication
  • Smaller than lead frame type components, thus enable smallerboard size, higher packing density, reduces storage space
  • Utilizing advanced EnGiNE chip technology
  • Lightweight makes it ideal for miniature application andmore
  • Automotive: backlighting in dashboards and switches
  • Telecommunications: indicators and backlighting in telephonesand faxes
  • Flat back lights for LCDs, switches and symbols
  • Indoor signboard uses
  • LCD back lights
  • Indicators
  • Illuminations
  • Mobile phones
  • General uses
