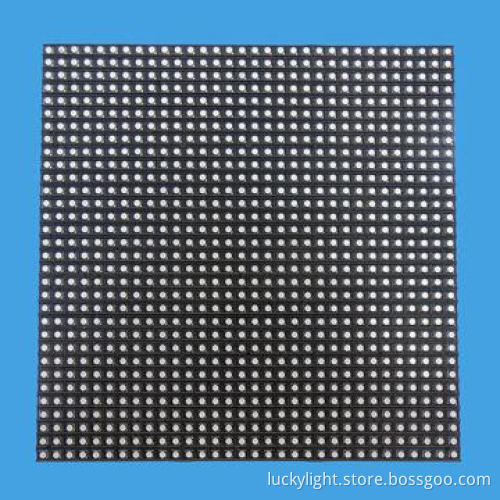

PH4 SMD Indoor Full Color LED Module with 4mm Pixel Pitch
  • PH4 SMD Indoor Full Color LED Module with 4mm Pixel Pitch
  • PH4 SMD Indoor Full Color LED Module with 4mm Pixel Pitch
PH4 SMD Indoor Full Color LED Module with 4mm Pixel Pitch
PH4 SMD Indoor Full Color LED Module with 4mm Pixel Pitch

PH4 SMD Indoor Full Color LED Module with 4mm Pixel Pitch

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Pixel pitch: 4mm
    • Pixel density: 62,500 pixels/m²
    • Refresh rate: e800Hz
    • Brightness: e1,300cd/m²
    • Pixel composition: 1R1G1B
    • LED encapsulation: 3528 SMD, RGB
    • Drive mode: 1/16 scan
    • Module size: 128 x 128mm
    • Cabinet size: 512 x 512mm
    • Viewing angle: <110°
    • White balance temperature: 5,500K (adjustment)
    • Working voltage: 5V DC
    • Power consumption: 600W/m² (average), 1,200W/m²(maximum)
    • Display interface: VGA, DVI
    • Temperature and humidity:
      • Storage: -30 to +80°C and 10 to 99% RH
      • Working: -20 to +60°C and 10 to 99% RH
    • Lifespan: 100,000 hours
    • Gap between modules: d1mm
    • EMI: meet EMC standard
  • Pixel pitch: 4mm
  • Pixel density: 62,500 pixels/m²
  • Refresh rate: e800Hz
  • Brightness: e1,300cd/m²
  • Pixel composition: 1R1G1B
  • LED encapsulation: 3528 SMD, RGB
  • Drive mode: 1/16 scan
  • Module size: 128 x 128mm
  • Cabinet size: 512 x 512mm
  • Viewing angle: <110°
  • White balance temperature: 5,500K (adjustment)
  • Working voltage: 5V DC
  • Power consumption: 600W/m² (average), 1,200W/m²(maximum)
  • Display interface: VGA, DVI
  • Temperature and humidity:
    • Storage: -30 to +80°C and 10 to 99% RH
    • Working: -20 to +60°C and 10 to 99% RH
  • Lifespan: 100,000 hours
  • Gap between modules: d1mm
  • EMI: meet EMC standard
  • Storage: -30 to +80°C and 10 to 99% RH
  • Working: -20 to +60°C and 10 to 99% RH
