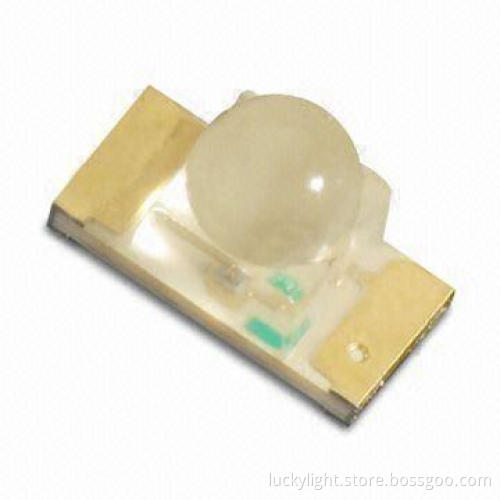

Blue SMD LED, Mono Color, 1206 Reverse Mount Package with Inner Lens, 3.20 x 1.60 x 1.10mm
  • Blue SMD LED, Mono Color, 1206 Reverse Mount Package with Inner Lens, 3.20 x 1.60 x 1.10mm
Blue SMD LED, Mono Color, 1206 Reverse Mount Package with Inner Lens, 3.20 x 1.60 x 1.10mm

Blue SMD LED, Mono Color, 1206 Reverse Mount Package with Inner Lens, 3.20 x 1.60 x 1.10mm

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Raw materials: chip, PCB, gold wire, silver glue, epoxy andmore
    • Size: 3.20 x 1.60 x 1.10mm
    • Emitting color: blue
    • Lens color: water clear
    • Wavelength: 470nm
    • Working voltage: 3.4 to 3.8V
    • Viewing angle: 120 degrees
    • Luminous intensity: 55 to 100mcd
    • Packing: 3,000 pieces per roll
    • Package in 8mm tape on 7-inch diameter reel
    • Compatible with automatic placement equipment
    • Compatible with infrared and vapor phase re-flow solderprocess
    • Mono-color type
  • Applications:
    • Automotive: backlighting in dashboard and switch
    • Telecommunication: indicator and backlighting in telephone andfax
    • Flat backlight for LCDs, switches and symbols
    • General use
  • Raw materials: chip, PCB, gold wire, silver glue, epoxy andmore
  • Size: 3.20 x 1.60 x 1.10mm
  • Emitting color: blue
  • Lens color: water clear
  • Wavelength: 470nm
  • Working voltage: 3.4 to 3.8V
  • Viewing angle: 120 degrees
  • Luminous intensity: 55 to 100mcd
  • Packing: 3,000 pieces per roll
  • Package in 8mm tape on 7-inch diameter reel
  • Compatible with automatic placement equipment
  • Compatible with infrared and vapor phase re-flow solderprocess
  • Mono-color type
  • Automotive: backlighting in dashboard and switch
  • Telecommunication: indicator and backlighting in telephone andfax
  • Flat backlight for LCDs, switches and symbols
  • General use
