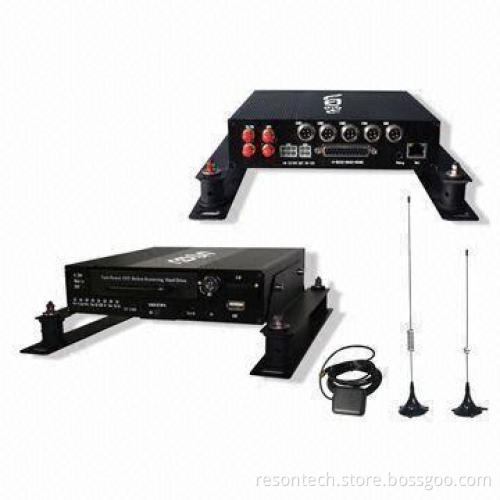

8CH CIF Mobile DVR with 3G EVDO Module, Google Free Map, Built-in Heater/GPS/Wi-Fi

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

H.264 for 8ch CIF record resolution

Independent dual stream network transmission

Built-in GPS module

Built-in 3G EVDO module

Built-in WiFi module

Built-in heater module (optional)

Built-in CANBUS interface

External G-sensor (optional)

Independent 6 vehicle status ports

4ch alarm in and 2ch alarm out

Alarm picture snapshot

8 to 36V power input

Independent 12 and 5V power output

Vent-free enclosure without fan

Model: HK-08C/G/O/W

Operation system: Linux

Video input: 8ch, 1.0Vp-p and 75©

Video output: 1ch, 1.0Vp-p and 75©

Compression: H.264

Image resolution: CIF

PAL: 352 x 288
NTSC: 352 x 240

Record resolution: CIF

Dual stream network transmission: independent CIF

Playback video frame: (PAL)1 to 25f/s (NTSC)1 to 30f/s

Record code rate: 16Kbps to 2Mbps adjustable, definable

Audio compression: PCM

Audio input: 8 channel, 3Vp-p line and 1K©

Audio output: 1 channel, 2Vp-p line and 600©

Communication port: RJ45, RS232, RS422, RS485, USB, S-video andCANBUS

Storage: 2.5-inch SATA HDD and maximum 1TB

3G module: EVDO

GPS module: with Sirf chip

Wi-Fi module: 802.11b/g/n

G-sensor: external (optional)

Vehicle status: independent 6 ports (door, left-turn,right-turn, brake, reverse and speed)

Alarm in: 4ch alarm input, passive

Alarm out: 2ch alarm output, electric relay(active)

Record mode: continuous, cycle, alarm

Video search mode: by channel, time, record type and recordpath

Text overlay: support (plate number, time, vehicle status)

On type: schedule and ignition

Off type: schedule, off delay (0 to 60 minutes) after ignitionoff

Heater module: optional

Power input: 8 to 36V DC

Power output: 5/12V DC, 2A

Power consumption: 8W (without communication module)

Work temperature: 0 to +60°C (customizable)

Work humidity: 10 to 95%

Weight: 1.25kg (without HDD)

Dimension (L x W x H): 176 x 182 x 42mm (without bracket)

PAL: 352 x 288

NTSC: 352 x 240
