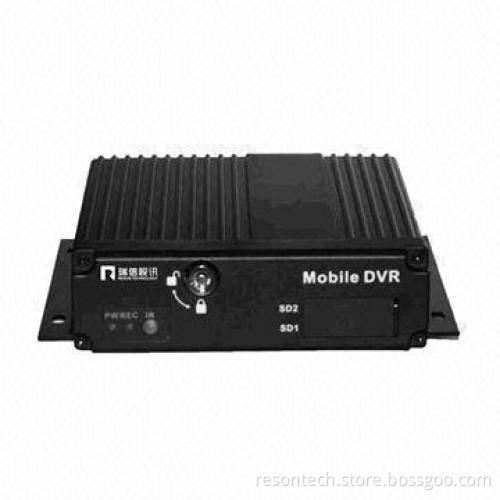

H.264 4ch CIF SD Card Mobile DVR with GPS Module/Built-in for Vehicle Tracking and Monitor Security

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Specifications:

Economic dual SD card mobile DVR

4ch video and audio input with special plug

H.264 for CIF record resolution

Built-in GPS receive module

RS485 communication port

6-36V power input

Vent-free enclosure without fan

Operation system: Linux

Video input: 4-channel, 1.0Vp-p, 75Ω

Video output: 1-channel, 1.0Vp-p, 75Ω

Compression: H.264

Image resolution: CIF (PAL: 352x288, NTSC: 352x240)

Record resolution: CIF

GPS module: built-in

Playback video frame: (PAL)1-25f/s, (NTSC)1-30f/s

Record code rate: 16K-2M adjustable, definable(unit: bps)

Audio compression: PCM

Audio input: 4 channel, 3Vp-p line, 1kΩ

Audio output: 1 channel, 2Vp-p line, 600Ω

Communication port: RS-485

Storage: dual SD card

Record mode: continuous, cycle and alarm

Video search mode: by channel, time, record type and record path

Text overlay: supports(plate number, time and vehicle status)

On type: schedule, ignition

Off type: schedule, off delay after ignition off(0 to 3,600 minutes)

Heater module: optional

Power input: 6 to 36V DC

Power output: 5V/12V DC, 2A

Power consumption: 8W(without communication module)

Work temperature: 0 to 60°C (system work environment temperature, customizable)

Work humidity: 10 to 95%

Dimension (with bracket) (L x W x H): 168 x 135 x 42mm
