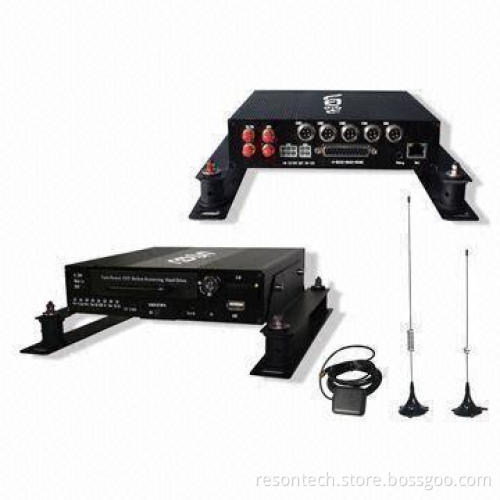

H.264 4CH Full D1 3G GPS Mobile DVR with Wi-Fi Download, CANbus, G-sensor and Dual Netwok Stream
  • H.264 4CH Full D1 3G GPS Mobile DVR with Wi-Fi Download, CANbus, G-sensor and Dual Netwok Stream
H.264 4CH Full D1 3G GPS Mobile DVR with Wi-Fi Download, CANbus, G-sensor and Dual Netwok Stream

H.264 4CH Full D1 3G GPS Mobile DVR with Wi-Fi Download, CANbus, G-sensor and Dual Netwok Stream

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • 4CH video and audio input with special plug
  • H.264 for 4CH D1 record resolution
  • Supports independent dual stream network transmission
  • Built-in GPS module (optional)
  • Built-in 3 G WCDMA/EVDO/TD-SCDMA modules (optional)
  • Built-in WiFi module (optional)
  • Built-in heater module (optional)
  • Built-in CANbus interface
  • Support external G-sensor (optional)
  • Independent 6 vehicle status ports, 1 for speed
  • 4CH alarm in, 2CH alarm out
  • Alarm picture snapshot
  • 8 to 36V power input
  • Independent 12/5V power output
  • Operating system: Linux
  • Video input: 4CH, 1.0Vp-p, 75©
  • Video output: 1CH, 1.0Vp-p, 75©
  • Compression: H.264
  • Image resolution: D1 (PAL: 704 x 576 pixels, NTSC: 704 x 480pixels)
  • Record resolution: D1
  • Dual stream network transmission: independent CIF
  • Playback video frame:
    • PAL: 1 to 25fps
    • NTSC: 1 to 30fps
  • Record code rate: 16K to 2M adjustable, definable (unit:bps)
  • Audio compression: PCM
  • Audio input: 4 channels, 3Vp-p line, 1K©
  • Audio output: 1 channel, 2Vp-p line, 600 ©
  • Communication port: RJ45, RS232, RS422, RS485, USB, S-video andCANbus
  • Storage: 2.5-inch SATA HDD, maximum 1TB
  • 3G module WCDMA HSPA
  • WiFi module: 802.11b/g/n
  • GPS module: Sirf chip
  • G-sensor: external (optional)
  • Independent 6 vehicle status ports: door, left-turn,right-turn, brake, reverse and speed
  • Alarm-in: 4CH, passive
  • Alarm-out : 2CH, electric relay (active)
  • Record mode: continuous, cycle and alarm
  • Video search mode: by channel, time, record type and recordpath
  • Text overlay: supported (plate number, time and vehiclestatus)
  • On type: schedule, ignition
  • Off type: schedule, off delay (0 to 60 minutes) after ignitionoff
  • Heater module: optional
  • Power input: 8 to 36V DC
  • Power output: 5/12V DC, 2A
  • Power consumption: 8W (without communication module)
  • Work temperature: 0 to 60°C (system work environmenttemperature, customizable)
  • Work humidity: 10 to 95%
  • Weight: 1.25kg (without HDD)
  • Dimensions (L x W x H): 176 x 182 x 42mm
  • PAL: 1 to 25fps
  • NTSC: 1 to 30fps
