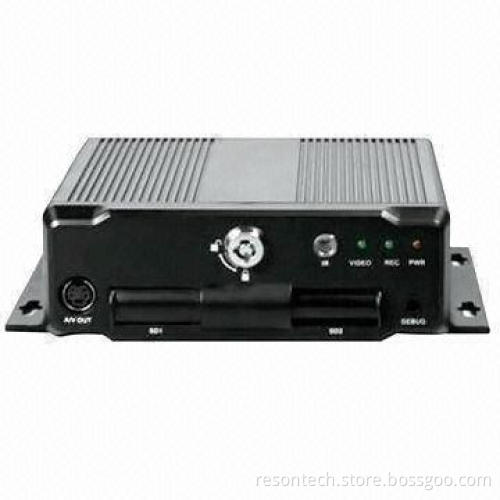

H.264 4CH Dual SD Card Mobile DVR with GPS Module Built-in, Supports GPS Tracking/Free Google Map

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

H.264 for 1CH D1+3ch CIF record resolution

Support independent dual stream network transmission

Built-in GPS module

Built-in heater module (optional)

Built-in CANBus interface

Support external G-sensor (optional)

Independent 5 vehicle status ports, 1 for speed

4CH alarm-in, 2CH alarm-out

Support alarming picture snapshot

8-36V power input

Independent 12V 5V power output

Dust-proof and shock-proof design

Specifications:

Operating system: Linux
Video input: 4-channel, 1.0Vp-p, 75©
Video output: 1 channel, 1.0Vp-p, 75©
Compression: H.264
Image resolution:
- D1:
  - PAL: 704 x 576 pixels
  - NTSC: 704 x 480pixels
- CIF:
  - PAL: 352 x 288 pixels
  - NTSC: 352 x 240 pixels
Record resolution: D1, CIF
Dual stream network transmission: independent CIF
Playback video frame: (1-25f/s PAL, 1-30f/s NTSC)
Record code rate: 16K, 2M adjustable, definable (unit:bps)
Audio compression: PCM
Audio input: 4 channel, 3Vp-p line, 1k©
Audio output: 1 channel, 2Vp-p line, 600©
Communication port: RJ45, RS232, RS422, RS485, USB, S-video,CANBUS
Storage: dual SD card
GPS module: built-in
G-Sensor: external (optional)
Vehicle status: independent 5 ports: door, left-turn,right-turn, brake, reverse and speed
Alarm in: 4CH alarm input, passive
Alarm out: 2CH alarm output, electric relay (active)
Record mode: continuous, cycle and alarm
Video search mode: by channel, time, record type and recordpath
Text overlay: supports (plate number, time and vehiclestatus)
On type: schedule, ignition
Off type: schedule, off delay after ignition off (0 to 60minutes)
Heater module: optional
Power input: 8 to 36V DC
Power output: 5V/12V.2A DC
Power consumption: 6W (without communication module)

Operating system: Linux

Video input: 4-channel, 1.0Vp-p, 75©

Video output: 1 channel, 1.0Vp-p, 75©

Compression: H.264

Image resolution:

D1:
- PAL: 704 x 576 pixels
- NTSC: 704 x 480pixels
CIF:
- PAL: 352 x 288 pixels
- NTSC: 352 x 240 pixels

Record resolution: D1, CIF

Dual stream network transmission: independent CIF

Playback video frame: (1-25f/s PAL, 1-30f/s NTSC)

Record code rate: 16K, 2M adjustable, definable (unit:bps)

Audio compression: PCM

Audio input: 4 channel, 3Vp-p line, 1k©

Audio output: 1 channel, 2Vp-p line, 600©

Communication port: RJ45, RS232, RS422, RS485, USB, S-video,CANBUS

Storage: dual SD card

GPS module: built-in

G-Sensor: external (optional)

Vehicle status: independent 5 ports: door, left-turn,right-turn, brake, reverse and speed

Alarm in: 4CH alarm input, passive

Alarm out: 2CH alarm output, electric relay (active)

Record mode: continuous, cycle and alarm

Video search mode: by channel, time, record type and recordpath

Text overlay: supports (plate number, time and vehiclestatus)

On type: schedule, ignition

Off type: schedule, off delay after ignition off (0 to 60minutes)

Heater module: optional

Power input: 8 to 36V DC

Power output: 5V/12V.2A DC

Power consumption: 6W (without communication module)

D1:

PAL: 704 x 576 pixels
NTSC: 704 x 480pixels

CIF:

PAL: 352 x 288 pixels
NTSC: 352 x 240 pixels

PAL: 704 x 576 pixels

NTSC: 704 x 480pixels

PAL: 352 x 288 pixels

NTSC: 352 x 240 pixels
