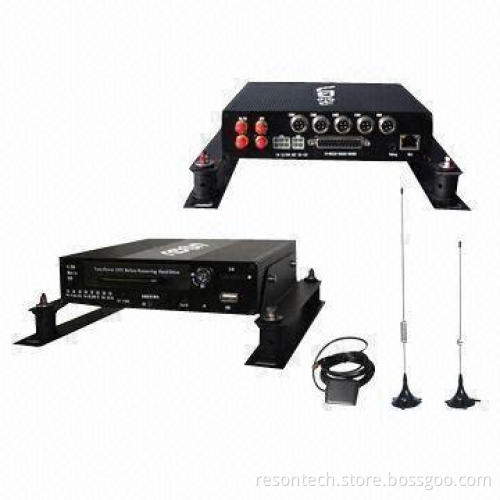

H.264 3G EVDO HDD Mobile DVR with GPS and Wi-Fi Built in, CAN Bus, G-sensor, Supports 4-ch Full D1

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

4-ch video and audio input with special plug
H.264 for 4-ch D1 record resolution
Supports independent dual stream network transmission
Built-in GPS module
Built-in 3 G EVDO modules
Built-in Wi-Fi module
Built-in heater module (optional)
Built-in CAN bus interface
Supports external G-sensor (optional)
Independent 6 vehicle status ports, 1 for speed
4-ch alarm in, 2-ch alarm out
Alarm picture snapshot
8 to 36V power input
Independent 12/5V power output

Specifications:

Operating system: Linux
Video input: 4-ch, 1.0Vp-p, 75Ω
Video output: 1-ch, 1.0Vp-p, 75Ω
Compression: H.264
Image resolution: D1 (PAL: 704 x 576 pixels, NTSC: 704 x 480pixels)
Record resolution: D1
Dual stream network transmission: independent CIF
Playback video frame: (PAL) 1 to 25fps and (NTSC) 1 to30fps
Record code rate: 16K to 2M adjustable, definable (unit:bps)
Audio compression: PCM
Audio input: 4 channels, 3Vp-p line, 1KΩ
Audio output: 1 channel, 2Vp-p line, 600Ω
Communication port: RJ45, RS232, RS422, RS485, USB, S-Video andCAN bus
Storage: 2.5 inches SATA HDD, maximum 1TB
3G module: EVDO
WiFi module: 802.11b/g/n
GPS module: SiRF chip
G-sensor: external (optional)
Independent 6 vehicle status ports: door, left-turn,right-turn, brake, reverse and speed
Alarm-in: 4-ch, passive
Alarm-out: 2-ch, electric relay (active)
Record mode: continuous, cycle and alarm
Video search mode: by channel, time, record type and recordpath
Text overlay: supported (plate number, time and vehiclestatus)
On type: schedule, ignition
Off type: schedule, off delay (0 to 60 minutes) after ignitionoff
Heater module: optional
Power input: 8 to 36V DC
Power output: 5/12V DC, 2A
Power consumption: 8W (without communication module)
Working temperature: 0 to 60°C (customized)
Working humidity: 10 to 95%
Dimensions: (L) 176 x (W) 182 x (H) 42mm
Weight: 1.25kg (without HDD)

4-ch video and audio input with special plug

H.264 for 4-ch D1 record resolution

Supports independent dual stream network transmission

Built-in GPS module

Built-in 3 G EVDO modules

Built-in Wi-Fi module

Built-in heater module (optional)

Built-in CAN bus interface

Supports external G-sensor (optional)

Independent 6 vehicle status ports, 1 for speed

4-ch alarm in, 2-ch alarm out

Alarm picture snapshot

8 to 36V power input

Independent 12/5V power output

Operating system: Linux

Video input: 4-ch, 1.0Vp-p, 75Ω

Video output: 1-ch, 1.0Vp-p, 75Ω

Compression: H.264

Image resolution: D1 (PAL: 704 x 576 pixels, NTSC: 704 x 480pixels)

Record resolution: D1

Dual stream network transmission: independent CIF

Playback video frame: (PAL) 1 to 25fps and (NTSC) 1 to30fps

Record code rate: 16K to 2M adjustable, definable (unit:bps)

Audio compression: PCM

Audio input: 4 channels, 3Vp-p line, 1KΩ

Audio output: 1 channel, 2Vp-p line, 600Ω

Communication port: RJ45, RS232, RS422, RS485, USB, S-Video andCAN bus

Storage: 2.5 inches SATA HDD, maximum 1TB

3G module: EVDO

WiFi module: 802.11b/g/n

GPS module: SiRF chip

G-sensor: external (optional)

Independent 6 vehicle status ports: door, left-turn,right-turn, brake, reverse and speed

Alarm-in: 4-ch, passive

Alarm-out: 2-ch, electric relay (active)

Record mode: continuous, cycle and alarm

Video search mode: by channel, time, record type and recordpath

Text overlay: supported (plate number, time and vehiclestatus)

On type: schedule, ignition

Off type: schedule, off delay (0 to 60 minutes) after ignitionoff

Heater module: optional

Power input: 8 to 36V DC

Power output: 5/12V DC, 2A

Power consumption: 8W (without communication module)

Working temperature: 0 to 60°C (customized)

Working humidity: 10 to 95%

Dimensions: (L) 176 x (W) 182 x (H) 42mm

Weight: 1.25kg (without HDD)
