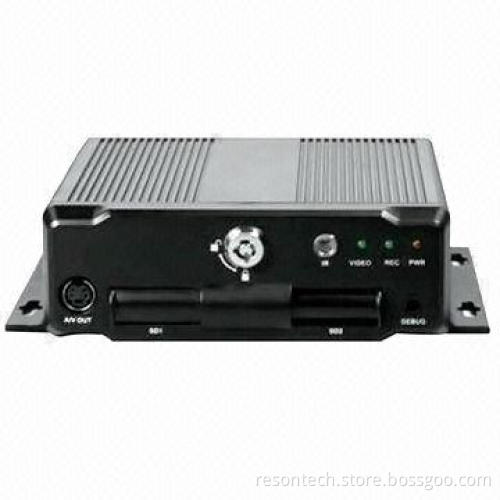

H.264 GPS SD Card Vehicle Mobile DVR with Built-in Wi-Fi Module 802.11b/g/n, S-video, Linux OS
  • H.264 GPS SD Card Vehicle Mobile DVR with Built-in Wi-Fi Module 802.11b/g/n, S-video, Linux OS
H.264 GPS SD Card Vehicle Mobile DVR with Built-in Wi-Fi Module 802.11b/g/n, S-video, Linux OS

H.264 GPS SD Card Vehicle Mobile DVR with Built-in Wi-Fi Module 802.11b/g/n, S-video, Linux OS

Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • H.264 for 1ch D1 + 3ch CIF record resolution
  • Supports independent dual stream network transmission
  • Built-in GPS module
  • Built-in Wi-Fi module
  • Built-in heater module (optional)
  • Built-in CANBUS interface
  • Supports external G-sensor (optional)
  • Independent 5 vehicle status ports, 1 for speed
  • 4ch alarm-in and 2ch alarm-out
  • Supports alarming picture snapshot
  • Input voltage: 8 to 36V
  • Independent 12/5V power output
  • Vent-free enclosure without fan
  • Specification:
    • Operating system: Linux
    • Video input: 4-channel, 1.0Vp-p, 75Ω
    • Video output: 1-channel, 1.0Vp-p, 75Ω
    • Compression: H.264
    • Image resolution: D1 (PAL: 704 x 576 and NTSC: 704 x 480) and CIF (PAL: 352 x 288 and NTSC: 352 x 240)
    • Record resolution: D1, CIF
    • Dual stream network transmission: independent CIF
    • Playback video frame: (1 to 25f/s PAL and 1 to 30f/s NTSC)
    • Record code rate: 16K, 2M adjustable, definable (unit: bps)
    • Audio compression: PCM
    • Audio input: 4-channel, 3Vp-p line, 1kΩ
    • Audio output: 1-channel, 2Vp-p line, 600Ω
    • Communication port: RJ45, RS232, RS422, RS485, USB, S-video, CANBUS
    • Storage: dual SD card
    • Wi-Fi module: built-in
    • GPS module: built-in
    • G-sensor: external (optional)
    • Vehicle status: independent 5 ports: door, left-turn, right-turn, brake, reverse, speed
    • Alarm-in: 4ch alarm input, passive
    • Alarm-out: 2ch alarm output, electric relay (active)
    • Record mode: continuous, cycle, alarm
    • Video search mode: by channel, time, record type, record path, etc.
    • Text overlay: supports (plate number, time, vehicle status, etc.)
    • On type: schedule, ignition
    • Off type: schedule, off delay after ignition off (0 to 60 minutes)
    • Heater module: optional
    • Input voltage: 8 to 36V DC
    • Output power supply: 5/12V DC, 2A
    • Power consumption: 6W (without communication module)
  • Operating system: Linux
  • Video input: 4-channel, 1.0Vp-p, 75Ω
  • Video output: 1-channel, 1.0Vp-p, 75Ω
  • Compression: H.264
  • Image resolution: D1 (PAL: 704 x 576 and NTSC: 704 x 480) and CIF (PAL: 352 x 288 and NTSC: 352 x 240)
  • Record resolution: D1, CIF
  • Dual stream network transmission: independent CIF
  • Playback video frame: (1 to 25f/s PAL and 1 to 30f/s NTSC)
  • Record code rate: 16K, 2M adjustable, definable (unit: bps)
  • Audio compression: PCM
  • Audio input: 4-channel, 3Vp-p line, 1kΩ
  • Audio output: 1-channel, 2Vp-p line, 600Ω
  • Communication port: RJ45, RS232, RS422, RS485, USB, S-video, CANBUS
  • Storage: dual SD card
  • Wi-Fi module: built-in
  • GPS module: built-in
  • G-sensor: external (optional)
  • Vehicle status: independent 5 ports: door, left-turn, right-turn, brake, reverse, speed
  • Alarm-in: 4ch alarm input, passive
  • Alarm-out: 2ch alarm output, electric relay (active)
  • Record mode: continuous, cycle, alarm
  • Video search mode: by channel, time, record type, record path, etc.
  • Text overlay: supports (plate number, time, vehicle status, etc.)
  • On type: schedule, ignition
  • Off type: schedule, off delay after ignition off (0 to 60 minutes)
  • Heater module: optional
  • Input voltage: 8 to 36V DC
  • Output power supply: 5/12V DC, 2A
  • Power consumption: 6W (without communication module)
