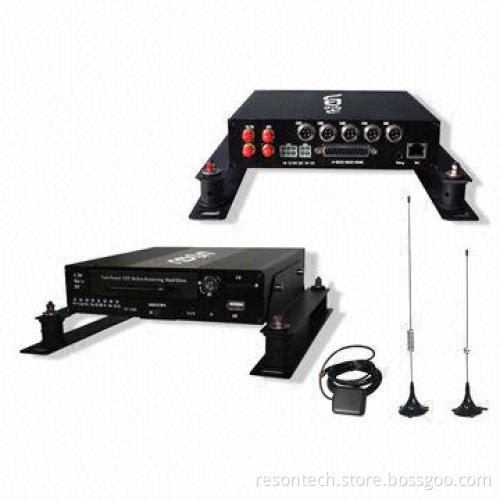

6CH H.264 GPS Mobile DVR with 3G and Wi-Fi Function, CIF, 1TB SATA HDD, CANbus, Optional G-sensor

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

H.264 for 6CH CIF record resolution

Independent dual-stream network transmission

Built-in GPS module

Built-in 3G WCDMA module

Built-in Wi-Fi module

Built-in heater module (optional)

Built-in CANbus interface

External G-sensor (optional)

Independent 6 vehicle status ports

4CH alarm in and 2CH alarm out

Alarm picture snapshot

6 to 36V power input

Independent 12 and 5V power output

Vent-free enclosure without fan

Operating system: Linux

Video input: 6CH, 1.0Vp-p and 75Ω

Video output: 1CH, 1.0Vp-p and 75Ω

Compression: H.264

Image resolution: CIF

PAL: 352 x 288

NTSC: 352 x 240

Record resolution: CIF

Dual stream network transmission: independent CIF

Playback video frame: (PAL) 1 to 25 and (NTSC)1 to 30f/s

Record code rate: 16Kbps to 2Mbps adjustable, definable

Audio compression: PCM

Audio input: 6 channels, 3Vp-p line and 1KΩ

Audio output: 1 channel, 2Vp-p line and 600Ω

Communication port: RJ45, RS232, RS422, RS485, USB, S-video and CANbus

Storage: 2.5-inch SATA HDD and maximum 1TB

3G module: WCDMA/HSPA

GPS module: with Sirf chip

Wi-Fi module: 802.11b/g/n

G-sensor: external (optional)

Vehicle status: independent 6 ports (door, left-turn, right-turn, brake, reverse and speed)

Alarm in: 4CH alarm input, passive

Alarm out: 2CH alarm output, electric relay (active)

Record mode: continuous, cycle, alarm

Video search mode: by channel, time, record type and record path

Text overlay: support (plate number, time, vehicle status)

On type: schedule and ignition

Off type: schedule, off delay (0 to 60 minutes) after ignition off

Heater module: optional

Input voltage: 8 to 36V DC

Output power supply: 5/12V DC, 2A

Power consumption: 8W (without communication module)

Work temperature: 0 to 60 degrees (customizable)

Work humidity: 10 to 95%

Weight: 1.25kg (without HDD)

Dimension (L x W x H): 176 x 182 x 42mm (without bracket)
