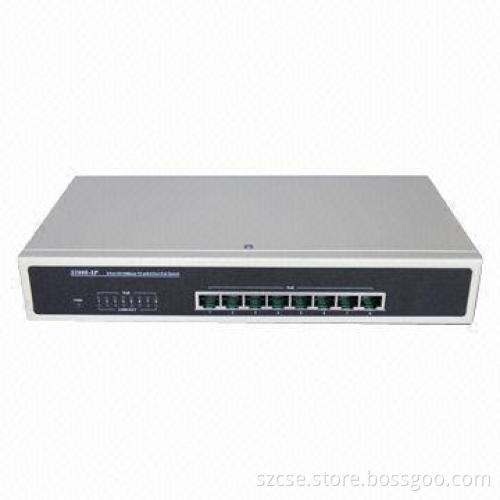

8-port/8 PoE Port Un-managed PoE Ethernet Switch for IP Camera, Built-in 48V DC Power Supply

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Descriptions:

Designed for residential buildings in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections
Case-shaped device with a chassis of 1U high
Provides 8 10/100 base-TX ports
Provides 4/8 PoE injector

Features:

Conforms to IEEE802.3, IEEE 802.3u and IEEE802.3af
Provides eight 10/100 base-TX ports
Provides 4/8 PoE injector and built-in AC power
High back-plane bandwidth 1.8Gbps
IEEE802.3 x flow control
Surge protection for power port and data ports
EMI standards, compliant with FCC, CE class B

Specifications:

Summarize:
- Fixed port: 8/10/100 base-TX ports
- LED indicators: PWR, PoE, Link/Act and VLAN LED
- Input voltages: 100 to 240V AC, 50/60Hz
- Power consumption: 70/130W (65/125W for PoE)
- Operating temperatures: 0 to 40°C
- Storage temperatures: -10 to 70°C
- Relative humidity range: 20 to 85% (non-condensing)
- Thermal methods: built-in noiseless fan
- Switching capacity: 1.8G
- Mac address table: 1K
- Traffic control IEEE 802.3x full-duplex flow control
PoE:
- PoE port: 4/8 10/100/1000 base-TX ports
- PoE standards: IEEE802.3af, per port 15.4W
- Pin assignment: V+ (RJ45 pin 4, 5), V- (RJ45 pin 7, 8)

Order information:

S2008-4P: 8-port un-managed Ethernet switch with 4 PoE injector
S2008-8P: 8-port un-managed Ethernet switch with 8 PoE injector

Designed for residential buildings in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections

Case-shaped device with a chassis of 1U high

Provides 8 10/100 base-TX ports

Provides 4/8 PoE injector

Conforms to IEEE802.3, IEEE 802.3u and IEEE802.3af

Provides eight 10/100 base-TX ports

Provides 4/8 PoE injector and built-in AC power

High back-plane bandwidth 1.8Gbps

IEEE802.3 x flow control

Surge protection for power port and data ports

EMI standards, compliant with FCC, CE class B

Summarize:
