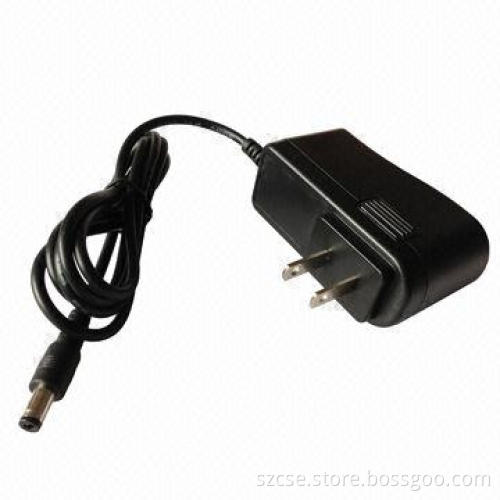

12V/1A Wall-mount CCTV Power Adapter, UL Certified

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Reliability with plastic crust

Built-in over-voltage, over-current and short-circuit protection

Input voltage: 100 to 240V AC

Frequency: 50/60Hz, less than 0.2A

Line regulation range: 0.5% (maximum)

Startup current: cold start, 40A/230V AC

Output:

Protection:

Environment requirements:

Elevation: less than 3000m

Dimensions: 75 x 46 x 29mm

Weight: 85g (approximately)

Certification: UL

Line regulation range: 0.5% (minimum)

Ripple and noise (mVp-p): at most one percent of output voltage

Adjustable range of output voltage: 5 or -3%

Startup time: at most one second (240V AC input and IO: 100%)

Hold-up time: at least 20ms (240V AC input and IO: 100%)

Overload protection range: 115 to 150% of rated power

Over-voltage protection range: 130 to 150% of rated voltage

Short-circuit protection

Operating temperature: 0 to 40°C

Operating humidity range: 10 to 90% RH (no freezing dew)

Storage temperature: -20 to 85°C

Storage humidity range: 10 to 95% RH (no freezing dew)
