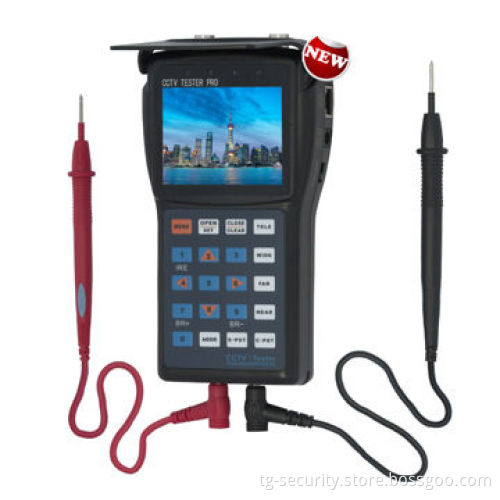

3.0-inch LCD Screen Multifunction CCTV Tester Monitor with PTZ Control

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Display: 3.0-inch LCD screen, 960 x 240p resolution

Signal-mode: NTSC/PAL automatically suitable

Video test

PTZ control and test

Digital multimeter function

Output: 12V DC power to camera

Video signal attenuation analyzing

UTP cable test: test UTP cable connection state

Video attenuation analyzing function

Updated RS485 data test function

Video input: 1-channel BNC

Video output: 1-channel BNC

Adjustable brightness

Communication: RS232, RS422 simplex and RS485

Protocol: includes >20 kinds of protocols or customized

Baud rate: 2,400, 4,800, 9,600 and 19,200bps

DC voltage test:

Maximum: 1000V
Precision: 0.1mV

AC voltage test:

Maximum: 750V
Precision: 0.1mV

Resistance test:

Maximum: 40MΩ
Precision: 0.1Ω

Voltage: 12V DC

Working time range: 4 to 5 hours to normal camera

Maximum current: 400mA

Signal generating: output 1 channel video signal for monitor testing

RS485 data test: test RS485 data sent from controlling device

OSD menu: English

Keyboard: new design with number buttons

Easy to operate

Power and battery: power adapter, 5V DC

Battery: 3000mAh Lithium inside

Recharging time: 6 hours

Low consumption

Sleeping mode, display battery power state

Working time: 10 hours

Working temperature range: -30 to 70°C

Working humidity range: 30 to 90% RH

Dimensions: 166 x 91 x 48mm

Packing

Carton size: 214 x 112 x 239mm
Weight: 900g

Maximum: 1000V

Precision: 0.1mV

Maximum: 750V

Precision: 0.1mV

Maximum: 40MΩ

Precision: 0.1Ω

Carton size: 214 x 112 x 239mm

Weight: 900g
