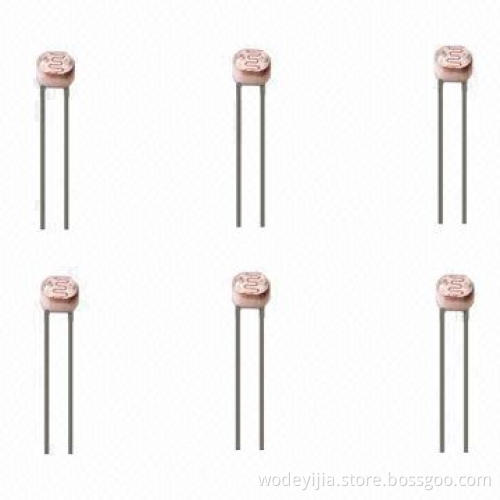

3mm Sensitive Photoresistors/LDR, 5 to 10kΩ in Light Resistance
  • 3mm Sensitive Photoresistors/LDR, 5 to 10kΩ in Light Resistance
3mm Sensitive Photoresistors/LDR, 5 to 10kΩ in Light Resistance

3mm Sensitive Photoresistors/LDR, 5 to 10kΩ in Light Resistance

Get Latest Price
Payment Type:
T/T, L/C, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union or PayPal
Product Description
Product Description
  • Type: GM3516
  • Maximum power consumption: 100V DC
  • Maximum peak value: 50mW
  • Spectrum peak value: 540nm
  • Light resistance: 5 to 10kΩ
  • Dark resistance: 0.6MΩ
  • Various sizes and resistance, including 3, 4, 5, 7, 11, 12, 20and 25mm
  • Measuring conditions:
    • Light resistance: measured at 10-lux with standard light A(2854K color temperature) and 2 hours illumination at 400 to600-lux prior to testing
    • Dark resistance: measured on the 10th second after closed10-lux
    • Gamma characteristic: between 10-lux and 100-lux and given by³: lg (R10/R100) R10, R100 cell resistance at 10-lux and100-lux
    • Error of ³ is ±0.1
    • Pmax: maximum power dissipation at ambient temperature of25°C
    • Vmax: maximum voltage in darkness that may be applied to cellcontinuously
  • Applications:
    • Camera automatic photometry
    • Photoelectric control
    • Indoor ray control
    • Annunciator
    • Industrial control
    • Light control switch
    • Light control lamp
    • Electronic toy
  • Light resistance: measured at 10-lux with standard light A(2854K color temperature) and 2 hours illumination at 400 to600-lux prior to testing
  • Dark resistance: measured on the 10th second after closed10-lux
  • Gamma characteristic: between 10-lux and 100-lux and given by³: lg (R10/R100) R10, R100 cell resistance at 10-lux and100-lux
  • Error of ³ is ±0.1
  • Pmax: maximum power dissipation at ambient temperature of25°C
  • Vmax: maximum voltage in darkness that may be applied to cellcontinuously
  • Camera automatic photometry
  • Photoelectric control
  • Indoor ray control
  • Annunciator
  • Industrial control
  • Light control switch
  • Light control lamp
  • Electronic toy
