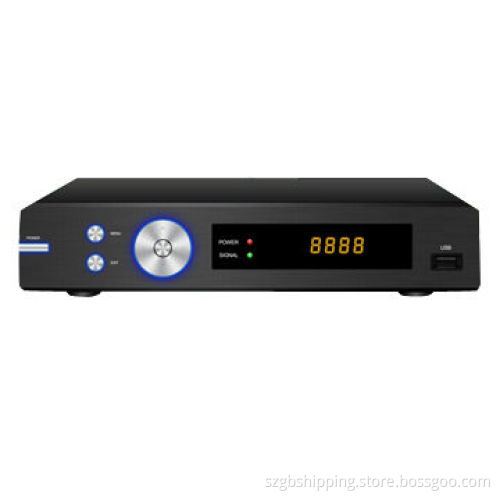

DVB-S/S2 DVB-T2 combo receiver, manufacturer

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Technical specifications:

STB type: DVB-S2+T2 combo receiver
Main chipset Ali3603
CPU frequency: 396MHz
Flash memory: 64Mbits
DDR memory: 1Gbits
Function/interface: YBPBR, RCA3 (CVBS, R/L audio), SCART (optional), HDMI, S/PDIF (coaxial or optical), USB 2.0, LNB in and loop out, card reader

Software general features:

MPEG: MPEG-2 SD, MPEG-2 HD, H.264/MPEG-4 SD, H.264/MPEG-4 HD
CA types: Conax CA (Chipset pairing level 4) supported
Channels number: 5000 channels TV and radio programs
Favorites: 8 different favorite groups selection
OSD language: multi-language OSD (English, Arabic, Turkish, Russian and more)
EPG: fully supports to 7 days electronic program guide (EPG)
PIG: picture in graphics (PIG) supported
Color OSD: 16 bits on screen display
NIT search: automatic network search for newly added transponders
DiSEqC/Switcher: DiSEqC1.0/1.1/1.2/USALS motor fully support, 13/18V, 0/22K, 0/12V LNB control
Channel edit: various channel editing functions (favorite, moving, locking, renaming, deleting and sorting)
Parental control: parental control for channels
Easy menu: easy to use menu system
Software upgrade: software upgrades through USB port, supports OTA upgrade
Timer: 8 timer reservations, automatically switch to a specific channel
Subtitle: subtitle supports DVB EN300743 and EBU
Teletext: Teletext supports DVB ETS300472 by VBI and OSD
Save channel: automatic save for last channel
Sort channel: list can be sorted by alphabetic A-Z, Pay-free, favorite, lock, Sat
Multi-resolution output: dual display – HD and SD simultaneous
USB/disk format, supports FAT/FAT32/NTFS
Files browser: AVI/TS/MP4/MPG/MKV/RMVB/VOB/MOV/DAT/SRT/BMP/JPG/JPEG/JIF/PNG files (need special license)
HDMI interface: 480i-60Hz, 480P-60Hz, 576P-50Hz, 720P-50Hz, 720P-60Hz, 1080i-50Hz, 1080i-60Hz, 1080P-25Hz, 1080P-30Hz, 1080P-24Hz, 1080P-50Hz, 1080P-60Hz with HDCP copy protection
Game: games (Othello, Sudoku)
Record: when recording, still can time shift

Mechanical:

Mechanical type: plastic front panel + metal housing
Dimensions: 220mm*40mm*130mm

Environment:

Input voltage: DC 12V/1.5A
Consumption: max 8W
Standby: ≤1.29W
Temperatures: 0-40°C
Humidity: <95%

STB type: DVB-S2+T2 combo receiver

Main chipset Ali3603

CPU frequency: 396MHz

Flash memory: 64Mbits

DDR memory: 1Gbits

Function/interface: YBPBR, RCA3 (CVBS, R/L audio), SCART (optional), HDMI, S/PDIF (coaxial or optical), USB 2.0, LNB in and loop out, card reader

MPEG: MPEG-2 SD, MPEG-2 HD, H.264/MPEG-4 SD, H.264/MPEG-4 HD

CA types: Conax CA (Chipset pairing level 4) supported

Channels number: 5000 channels TV and radio programs

Favorites: 8 different favorite groups selection

OSD language: multi-language OSD (English, Arabic, Turkish, Russian and more)

EPG: fully supports to 7 days electronic program guide (EPG)

PIG: picture in graphics (PIG) supported

Color OSD: 16 bits on screen display

NIT search: automatic network search for newly added transponders

DiSEqC/Switcher: DiSEqC1.0/1.1/1.2/USALS motor fully support, 13/18V, 0/22K, 0/12V LNB control

Channel edit: various channel editing functions (favorite, moving, locking, renaming, deleting and sorting)

Parental control: parental control for channels

Easy menu: easy to use menu system

Software upgrade: software upgrades through USB port, supports OTA upgrade

Timer: 8 timer reservations, automatically switch to a specific channel

Subtitle: subtitle supports DVB EN300743 and EBU

Teletext: Teletext supports DVB ETS300472 by VBI and OSD

Save channel: automatic save for last channel

Sort channel: list can be sorted by alphabetic A-Z, Pay-free, favorite, lock, Sat

Multi-resolution output: dual display – HD and SD simultaneous

USB/disk format, supports FAT/FAT32/NTFS

Files browser: AVI/TS/MP4/MPG/MKV/RMVB/VOB/MOV/DAT/SRT/BMP/JPG/JPEG/JIF/PNG files (need special license)

HDMI interface: 480i-60Hz, 480P-60Hz, 576P-50Hz, 720P-50Hz, 720P-60Hz, 1080i-50Hz, 1080i-60Hz, 1080P-25Hz, 1080P-30Hz, 1080P-24Hz, 1080P-50Hz, 1080P-60Hz with HDCP copy protection

Game: games (Othello, Sudoku)

Record: when recording, still can time shift

Mechanical type: plastic front panel + metal housing

Dimensions: 220mm*40mm*130mm

Input voltage: DC 12V/1.5A

Consumption: max 8W

Standby: ≤1.29W

Temperatures: 0-40°C

Humidity: <95%
