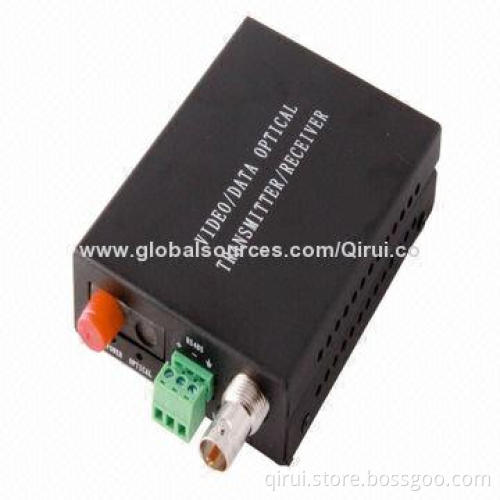

1 Channel Video & 1 Duplex Audio to Fiber Optic Video Multiplexer Transmitter and Receiver SM FC 20km

Descriptions:

Model: 1V1D-SM-FC-20KM
Transmitter + Receiver
Fiber mode: single-mode
Wavelengths: 1310nm/1550nm
Optical Power Budget: 12dB
Maximum transmission distance: 20km
Fiber optic video transmitter & receiver transmission 1-channel digital composite video and 1 return data, the data support RS485, RS232, RS422 Protocols.
Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)

Key features:

Support Point-to-Point or Daisy-Chain connection
Uncompressed Digital Composite Video over one fiber
Compatible with all PAL, NTSC,SECAM Video Systems
Data support RS485 (2-wire or 4-wire),RS232,RS422, contact closure single-mode fiber support for distances up to 100km
LED Status Provide Rapid Indication of Operating Parameters
No EMI or RFI and no ground loops. Support Coarse Wavelength Division Multiplexing (CWDM). Stand alone

Produce according to customer's specifications, providing OEM

Specifications

Number of Channels: 1 channel Video Video 75Ω BNC (Gold Center Pin)
Input/output impedance: BNC 75Ω Data 3 Pin Terminal Block
Input/output Compatibility: PAL,NTSC,SECAM Optical FC (Standard)
Input/output voltage: 1.0 Volt p-p Standalone power Screw terminal block
Bandwidth: 6.5MHz Rack Power AC line card
Bit Resolution: 8-bit digital transmission electrical & mechanical
Differential gain: < 1.5% Input Power Requirements DC 5V@2A
Differential phase: < 1.5°
Power adapter: 100V~240V AC
Tilt: < 5%
Power consumption: < 3W
Signal-to-noise ratio(SNR): > 67dB
Shipping weight: 1.2kg (include TX & RX)
Data: data formats RS485(2-wire or 4-wire), RS232/422,Contact Closure
Data rate: DC to 115.2Kbps
Bit error rate: 10E-9
Environmental:
- Operating temperature -45 to +75 deg. C
- Storage temperature -45 to +85 deg. C
- Relative humidity: 0%~95% (non-condensing) MTBF: >100,000 hours
