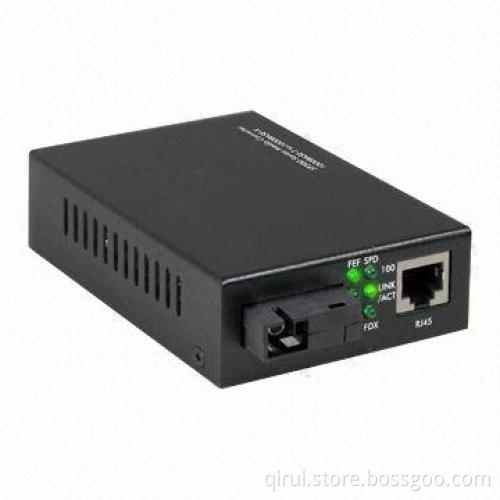

Fiber Optic to RJ45 Media Converter, 10/100/1000M WDM BIDI Fiber Single Mode T1310/R1550nm

Fiber Optic to RJ45 Media Converter, 10/100/1000M WDM BIDI Fiber Single Mode T1310/R1550nm

Get Latest Price

Payment Type:: T/T, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or PayPal

Product Description

Media converter 10/100/1000M WDM BIDI fiber single modeT1310nm/R1550nm, 25km SC connector

Ethernet fiber media converter 10/100/1000M WDM BIDI singlefiber mode T1310nm/R1550nm 25km SC 1SC+1RJ45

Media converters can be used anywhere in the network tointegrate newer technology with existing equipment to support newapplications, technologies and future growth. Instead of costly,across-the-board upgrades, media converters can extend theproductive life of the existing cabling as well as the activeequipment

This item is a Ethernet fiber media converter 10/100/1000M WDMBIDI single fiber mode T1310nm/R1550nm 25km SC 1SC+1RJ45

Key features:

10/100/1000Mbps auto-negotiation supports IEEE 802.3xfull-duplex flow control and back pressure half-duplex flowcontrol
Supports MAC self-learning
Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, 10/100Base-TX,100Base-FX, 10/100/1000Base-TX, 1000Base-FX/LX Port base VLAN LEDstatus of Link, activity, full/half duplex, speed and power ondiagnostic function Extremely low power consumption and low heatReliable and stable performance

Specification:

UTP port: 1-port RJ45 or 2UTP, 4UTP, 8UTP
UTP rate: 10/100/1000Mbps
Fiber port: Simplex SC/SFP, LC, ST
Fiber rate: 1000Mbps
Fiber wavelength: 850nm/1310/1550nm
Fiber mode: multi-mode/single-mode single fiber
Distance: 0.5, 2, 5, 20, 40, 60, 100, 120km
LED Indicator: TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX
Power supply: external
Working temperature: -20 to 75 degrees C
Relative humidity: 5 to 90%

10/100/1000Mbps auto-negotiation supports IEEE 802.3xfull-duplex flow control and back pressure half-duplex flowcontrol

Supports MAC self-learning

Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, 10/100Base-TX,100Base-FX, 10/100/1000Base-TX, 1000Base-FX/LX Port base VLAN LEDstatus of Link, activity, full/half duplex, speed and power ondiagnostic function Extremely low power consumption and low heatReliable and stable performance

UTP port: 1-port RJ45 or 2UTP, 4UTP, 8UTP

UTP rate: 10/100/1000Mbps

Fiber port: Simplex SC/SFP, LC, ST

Fiber rate: 1000Mbps

Fiber wavelength: 850nm/1310/1550nm

Fiber mode: multi-mode/single-mode single fiber

Distance: 0.5, 2, 5, 20, 40, 60, 100, 120km

LED Indicator: TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX

Power supply: external

Working temperature: -20 to 75 degrees C

Relative humidity: 5 to 90%
