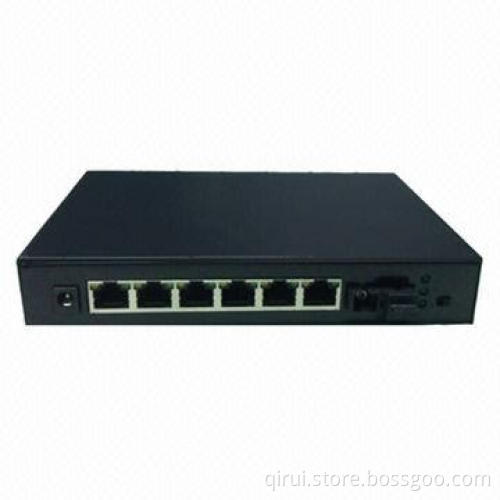

10/100M Dual Fiber 1550nm 60km SC 1SC+6RJ45 6Port Ethernet Fiber Optic Switch

10/100M Dual Fiber 1550nm 60km SC 1SC+6RJ45 6Port Ethernet Fiber Optic Switch

Get Latest Price

Payment Type:: T/T, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or PayPal

Product Description

Ethernet fiber media converter 10/100M dual fiber 1550nm 60km SC 1SC+8RJ45

Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment. We supply 10/100Base Ethernet Fiber Media converters, 1000Base Gigabit Fiber Media converter, SFP Fiber Media Converter, options in singlemode dual fiber, multimode dual fiber and singlemode single fiber. We also supply Media converter chassis, like 14 slot media converter chassis and 16 slot media converter chassis, used to manage the various media converters

Features

Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration
Link Pass Through: Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal
Automatic Link Restoration: The media converters will automatically re-establish link in all network conditions
Selectable speed setting: The converter can be set to 10Mbps or 100Mbps. Both copper and fiber ports are automatically set to the same speed. Devices connect to duplex mode of link partner

Key features:

10/100Mbps auto-negotiation
Supports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control
Supports MAC self-learning
Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, 10/100Base-TX, 100Base-FX, 10/100/1000Base-TX, 1000Base-FX/LXPort base VLAN
LED status of Link, activity, Full/half duplex, speed and power on diagnostic function
Extremely low power consumption and low heat
Reliable and stable performance
Applications: Extend ethernet network distances
It use the 10BASE-T to 10BASE-FL speed setting (back-to-back) to extend the distance between two 10BASE-T devices up to 100km, using single mode fiber without a repeater or interface directly with a 100BASE-FX compliant port on any device to provide a 100BASE-TX port interface

Specifications:

UTP port: 8-port RJ45UTP
Rate: 10/100Mbps
Fiber port: Duplex SC, ST, FC available
Fiber rate: 100Mbps
Fiber wavelength: 1550nm
Fiber mode: Single-mode
Distance: 60km
LED indicator: TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX
Power supply: External
Working temperatures: -20~75°C
Relative humidity range: 5%~90%

Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment. We supply 10/100Base Ethernet Fiber Media converters, 1000Base Gigabit Fiber Media converter, SFP Fiber Media Converter, options in singlemode dual fiber, multimode dual fiber and singlemode single fiber. We also supply Media converter chassis, like 14 slot media converter chassis and 16 slot media converter chassis, used to manage the various media converters

Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration

Link Pass Through: Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal

Automatic Link Restoration: The media converters will automatically re-establish link in all network conditions

Selectable speed setting: The converter can be set to 10Mbps or 100Mbps. Both copper and fiber ports are automatically set to the same speed. Devices connect to duplex mode of link partner

10/100Mbps auto-negotiation

Supports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control

Supports MAC self-learning

Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, 10/100Base-TX, 100Base-FX, 10/100/1000Base-TX, 1000Base-FX/LXPort base VLAN

LED status of Link, activity, Full/half duplex, speed and power on diagnostic function

Extremely low power consumption and low heat

Reliable and stable performance

Applications: Extend ethernet network distances

It use the 10BASE-T to 10BASE-FL speed setting (back-to-back) to extend the distance between two 10BASE-T devices up to 100km, using single mode fiber without a repeater or interface directly with a 100BASE-FX compliant port on any device to provide a 100BASE-TX port interface

UTP port: 8-port RJ45UTP

Rate: 10/100Mbps

Fiber port: Duplex SC, ST, FC available

Fiber rate: 100Mbps

Fiber wavelength: 1550nm

Fiber mode: Single-mode

Distance: 60km

LED indicator: TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX

Power supply: External

Working temperatures: -20~75°C

Relative humidity range: 5%~90%
