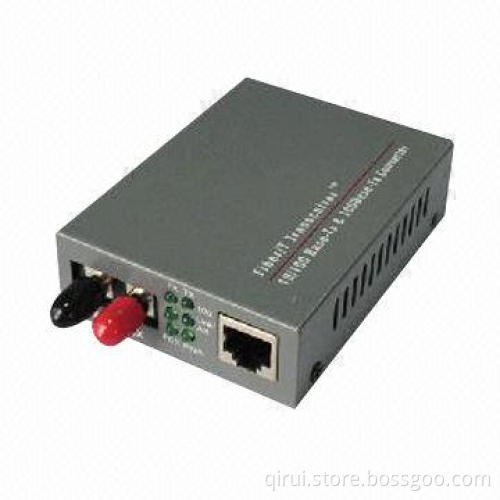

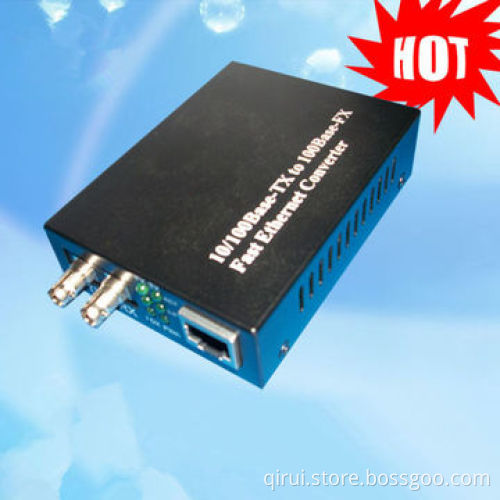

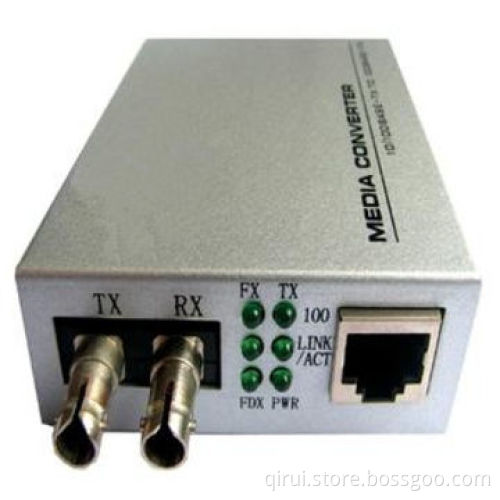

ST fiber media converter, 155M -T1310/R1550- 40km, dual fiber single mode media converter

ST fiber media converter, 155M -T1310/R1550- 40km, dual fiber single mode media converter

Get Latest Price

Payment Type:: T/T, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or PayPal

Product Description

Specifications:

10/100/1,000Mbps adaptive gigabit Ethernet media converter adopts switching technology to fulfill media conversion
It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards
Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX
Extends the transmission distance of network from 100m via copper cable to 20km via fiber optical cables
Supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber

Features:

With distinct IC IP113 HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control
Supports inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX
10/100/1000M media converter with SFP slot is available
Supports full-duplex and half-duplex and its auto-sensed
Supports auto-sense of MDI/MDI-X, facilitating system commissioning and installation
Supports the transmission of extra-long VLAN packets
Supports quality of service (QoS) and ensuring the transmission of VoIP packets
Supports spanning tree protocol (STP) to form a redundant network
Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
External power supply

Technical Indexes:

Access mode: 10/100/10,00Mbps Gigabit Ethernet
Standards: IEEE802.3, IEEE802.3U, IEEE802.3X, IEEE 802.3Z, IEEE 802.3ad, IEEE802.1d Transparent Bridging, IEEE802.1q Ethernet VLAN
Wavelength: 850nm/1310nm/1550nm
Flow control: Full duplex: IEEE802.3x flow control; Half Duplex: Back pressure flow control
Transmission distance: Multiple-mode dual-fiber: 220m (62.5/125μ M)/550m (50/125μ M)
Single mode dual-fiber: 20/40/60/80/100Km
Single mode single fiber: 20/40/60/80Km
Category-5 twisted pairs: 100m
Port one RJ45 port: For connecting with STP/UTP category-5 twisted pairs
One optical port:
Multi-mode dual-fiber: SC/LC (SFP) (50, 62.5/125μ M)
Single mode dual-fiber: SC/FC/LC (SFP) (9/125μ M)
Single mode single fiber: SC/FC/LC (SFP) (9/125μ M)
MAC address table: 4K
Data buffer: 256K
Conversion means: Media conversion
BER: <10-9
MTBF: 100, 000 hours
LED indicator: POWER (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair connection 1000M), TP LINK100 (twisted pair connection 100M), TP ACT (twisted pair packet forwarding action)
Power supply: 5V 1A DC
Power consumption: 5W
Operating temperatures: -10-55 degrees Celsius

10/100/1,000Mbps adaptive gigabit Ethernet media converter adopts switching technology to fulfill media conversion

It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards

Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 1000Base-SX/LX

Extends the transmission distance of network from 100m via copper cable to 20km via fiber optical cables

Supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber

With distinct IC IP113 HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control

Supports inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX

10/100/1000M media converter with SFP slot is available

Supports full-duplex and half-duplex and its auto-sensed

Supports auto-sense of MDI/MDI-X, facilitating system commissioning and installation

Supports the transmission of extra-long VLAN packets

Supports quality of service (QoS) and ensuring the transmission of VoIP packets

Supports spanning tree protocol (STP) to form a redundant network

Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

External power supply

Access mode: 10/100/10,00Mbps Gigabit Ethernet

Standards: IEEE802.3, IEEE802.3U, IEEE802.3X, IEEE 802.3Z, IEEE 802.3ad, IEEE802.1d Transparent Bridging, IEEE802.1q Ethernet VLAN

Wavelength: 850nm/1310nm/1550nm

Flow control: Full duplex: IEEE802.3x flow control; Half Duplex: Back pressure flow control

Transmission distance: Multiple-mode dual-fiber: 220m (62.5/125μ M)/550m (50/125μ M)

Single mode dual-fiber: 20/40/60/80/100Km

Single mode single fiber: 20/40/60/80Km

Category-5 twisted pairs: 100m

Port one RJ45 port: For connecting with STP/UTP category-5 twisted pairs

One optical port:

Multi-mode dual-fiber: SC/LC (SFP) (50, 62.5/125μ M)

Single mode dual-fiber: SC/FC/LC (SFP) (9/125μ M)

Single mode single fiber: SC/FC/LC (SFP) (9/125μ M)

MAC address table: 4K

Data buffer: 256K

Conversion means: Media conversion

BER: <10-9

MTBF: 100, 000 hours

LED indicator: POWER (power supply), FX LINK (optical link action), TP LINK1000 (twisted pair connection 1000M), TP LINK100 (twisted pair connection 100M), TP ACT (twisted pair packet forwarding action)

Power supply: 5V 1A DC

Power consumption: 5W

Operating temperatures: -10-55 degrees Celsius
