Fiber media converter: 10M/100M/1000M, BIDI, WDM, T1310/R1550+40KM

Fiber media converter: 10M/100M/1000M, BIDI, WDM, T1310/R1550+40KM

Get Latest Price

Payment Type:: T/T, +Western+Union+or+PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,+Western+Union+or+PayPal

Product Description

Fiber+media+converter:10M/100M/1000M+bidi+wdm+T1310/R1550+40KM+media+converter

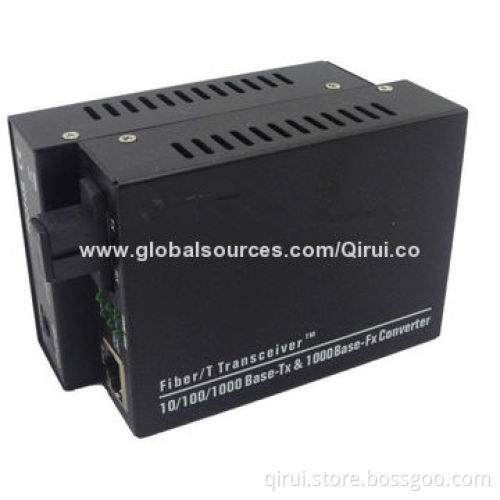

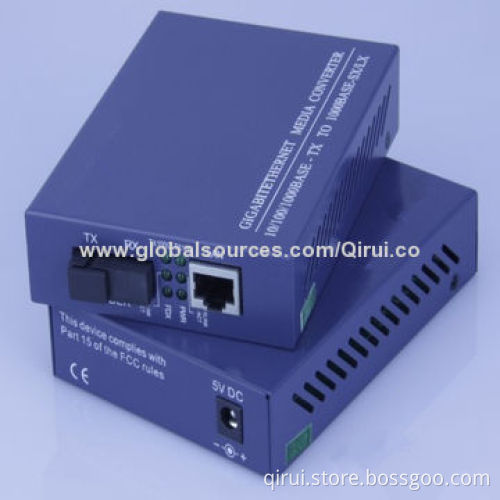

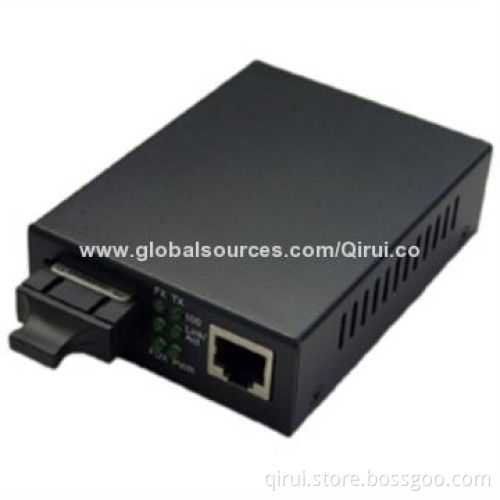

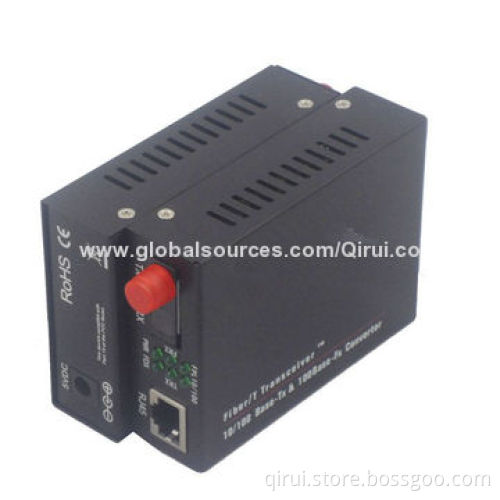

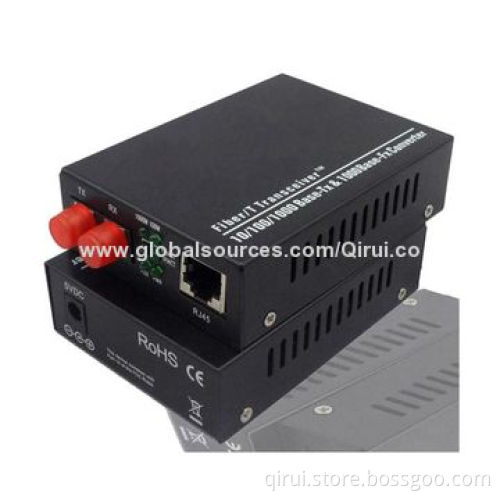

A Pair of BIDI WDM Single Fiber Ethernet Converter 10/100/1000M 1310/1550nm 40km SC 1SC+1RJ45

Media converters can be used anywhere in the network to integrate newer technology with existing equipment to support new applications, technologies and future growth. Instead of costly, across-the-board upgrades, media converters can extend the productive life of the existing cabling as well as the active equipment.

We supply 10/100Base Ethernet Fiber Media Converters, 1000Base Gigabit Fiber Media Converter,SFP Fiber Media Converter, Options in singlemode dual fiber, multimode dual fiber and singlemode single fiber. We also supply Media converter Chassis, like 14 slot media converter chassis and 16 slot media converter chassis, used to manage the various media converters.

Features

AutoCross™: Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.Link Pass Through: Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal.Automatic Link Restoration: The medio converters will automatically re-establish link in all network conditions.Selectable speed setting: The converter can be set to 10Mbps or 100Mbps. Both copper and fiber ports are automatically set to the same speed. Devices connect to duplex mode of link partner.

Key features

10/100/1000Mbps auto-negotiationSupports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control
Supports MAC self-learning
Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, 10/100Base-TX, 100Base-FX, 10/100/1000Base-TX, 1000Base-FX/LXPort base VLANLED status of Link, activity, Full/half duplex, speed and power on diagnostic function
Extremely low power consumption and low heatReliable and stable performance
Applications:10/100/1000M Ethernet Network Distances
It use the 10/100/1000BASE-T to 1000BASE-X speed setting (back-to-back) to extend the distance between two 100BASE-T devices up to 80km. using single mode fiber without a repeater.Specifications
UTP Port: 1-port RJ45UTP Rate: 10/100/1000MbpsFiber Port: Simplex SC, ST, FC availableFiber Rate: 1000MbpsFiber Wavelength: 1310/1550nmFiber Mode: Single-modeDistance: 40kmLED Indicator: TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX.Power Supply: External working temperature: -20~75 deg. C
Relative humidity: 5%~90%

AutoCross™: Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.Link Pass Through: Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal.Automatic Link Restoration: The medio converters will automatically re-establish link in all network conditions.Selectable speed setting: The converter can be set to 10Mbps or 100Mbps. Both copper and fiber ports are automatically set to the same speed. Devices connect to duplex mode of link partner.

10/100/1000Mbps auto-negotiationSupports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control

Supports MAC self-learning

Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, 10/100Base-TX, 100Base-FX, 10/100/1000Base-TX, 1000Base-FX/LXPort base VLANLED status of Link, activity, Full/half duplex, speed and power on diagnostic function

Extremely low power consumption and low heatReliable and stable performance

Applications:10/100/1000M Ethernet Network Distances

It use the 10/100/1000BASE-T to 1000BASE-X speed setting (back-to-back) to extend the distance between two 100BASE-T devices up to 80km. using single mode fiber without a repeater.Specifications

UTP Port: 1-port RJ45UTP Rate: 10/100/1000MbpsFiber Port: Simplex SC, ST, FC availableFiber Rate: 1000MbpsFiber Wavelength: 1310/1550nmFiber Mode: Single-modeDistance: 40kmLED Indicator: TX LINK, FX LINK, TX ACT, FX ACT, PWR, FDX.Power Supply: External working temperature: -20~75 deg. C

Relative humidity: 5%~90%
