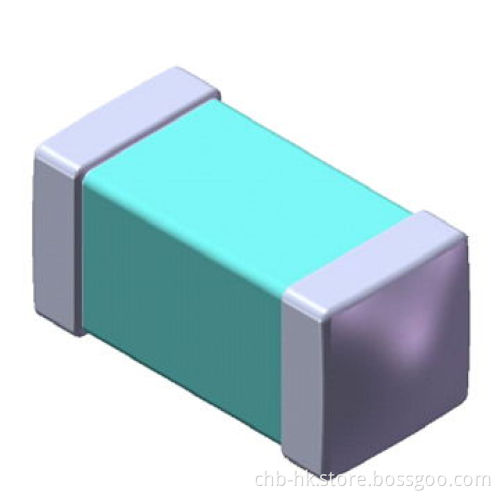

SMD Diode, ESD 0603, 14V, 0.25pF Capacitance, 500V Trigger Voltage, 50V Clamping Voltage

SMD Diode, ESD 0603, 14V, 0.25pF Capacitance, 500V Trigger Voltage, 50V Clamping Voltage

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Rated voltage: 14V DC (maximum)

Capacitance (1GHz): 0.25pF (typical)

Trigger voltage: 500V

Clamping voltage: 50V

Response time: less than 1ns

IEC61000-4-2 direct discharge: level 4-8kV

IEC61000-4-2 air discharge: level 4-15kV

ESD pulse withstanding capability:1000 times (typical) (leakage current <10μA after 1000 pulses)

Typical applications: USB, IEEE1394, HDMI, DisplayPort, DVI, antennas, UDI, E-SATA, LCD TV, set top box, DVD, LCD monitor, notebook, mobile phone, netbook and MID
