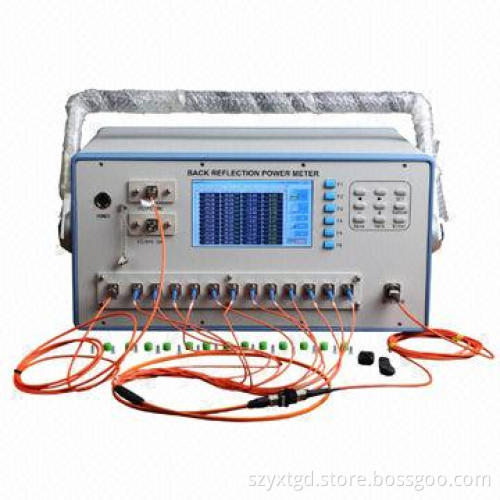

MPO-Back Reflection Power Meter

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Introduction:

This machine is a multiple channel Insert and return Loss function with multiple tester functions. Can test 4/8/12/24 cores with MPO connector, also can test PLC loss test etc. Machine adopted advanced operation system, it has one key testing, data display, Microsoft Excel data save, threshold value setting and multiple functions, no need connect PC, also can test and finish many test, easy and simple,can satisfied with many clients requirements

Type: MPO multiple insert and return loss tester0

Output wavelength: 850/1,310/1,550nm

Optical return loss test:

Operate wavelength: 1,310/1,550nm
Testing range: 0-75dB
Calibration wavelength: 1,310/1,550nm
Test accuracy: 0.25dB
Output channel: 12 channels
Output stability: 0.02dB/h (@ 250C)
Connector type: FC/APC

Optical insert loss tester:,ul>

Calibration wavelength: 850/1,300/1,310/1,490/1,550/1,625nm

Test range: +3--80dBm

Test accuracy: 0.01dB

Test resolution:

Logarithm: 0.01dB

Linearity: 0.001nW/μW/mW

Uncertainty: ±5%

Test modes: linearity and non-linearity

Detector type: InGaAs (5mm)

Connector type: 2.5mm all ok/1.25mm all ok/MT-RJ/MPO/MPU etc.

This machine is a multiple channel Insert and return Loss function with multiple tester functions. Can test 4/8/12/24 cores with MPO connector, also can test PLC loss test etc. Machine adopted advanced operation system, it has one key testing, data display, Microsoft Excel data save, threshold value setting and multiple functions, no need connect PC, also can test and finish many test, easy and simple,can satisfied with many clients requirements

Operate wavelength: 1,310/1,550nm

Testing range: 0-75dB

Calibration wavelength: 1,310/1,550nm

Test accuracy: 0.25dB

Output channel: 12 channels

Output stability: 0.02dB/h (@ 250C)

Connector type: FC/APC

Save quantity: almost 1,000,000pcs

Optical switch parameter: 1 x 12, 0.02dB

Display type: color LCD

Display resolution: 800 x 480p

Communication interface: USB
