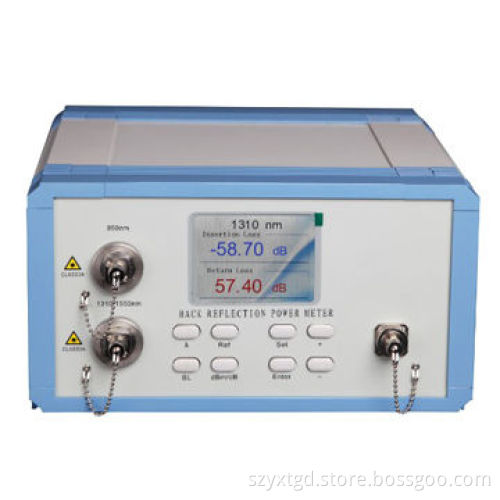

Back Reflection Power Meter

Insertion and return loss tester is a precision test instrument, which integrated the stable dual-wavelength light source, power meter, insertion tester and return loss tester in one unit. Not only features the super-accurate detection circuit of the weak signal, but also work with the signal analysis ,processing and software processing technology Widely used to measure the loss of optical fiber and passive device in optical fiber communication system research, development and productionFour instrument integrated in one unit: return loss tester/power meter/insertion loss tester /light sourceLarge area detector, good repeatabilityOptical power RL and IL loss test mode can switch aroundThe insertion loss of 1,310/1,550/850nm can be tested and displayed simultaneouslyWith the operating system, the machine can be used to store data, can be U disk read and online printColor recognition function, through the color recognition resultsOptical fiber projectsOptical fiber sensing researchOptics production and R&D researchReturn loss technical parameters:

Operating wavelength: 1,310/1,550nmMeasurement range: 0-75dBCalibrated wavelength: 1,310/1,550nmTest accuracy: 0.25dBOutput stability: 0.02dB/hour (@250 degrees C)Output interface: FC/APC

Insertion loss technical parameters:

Calibrated wavelength: 850/1,310/1,550nmMeasurement range: +3 to -80dBmTest accuracy: 0.25dBAccuracy: 0.001dBOutput interface: FC/APC

Operating wavelength: 1,310/1,550nmMeasurement range: 0-75dBCalibrated wavelength: 1,310/1,550nmTest accuracy: 0.25dBOutput stability: 0.02dB/hour (@250 degrees C)Output interface: FC/APCCalibrated wavelength: 850/1,310/1,550nmMeasurement range: +3 to -80dBmTest accuracy: 0.25dBAccuracy: 0.001dBOutput interface: FC/APCCommunication interface: USBVoltage: 90-260V ACOperating temperature: -50 to +550 degrees CDimension: 265x265x140mmWeight: 3kg
