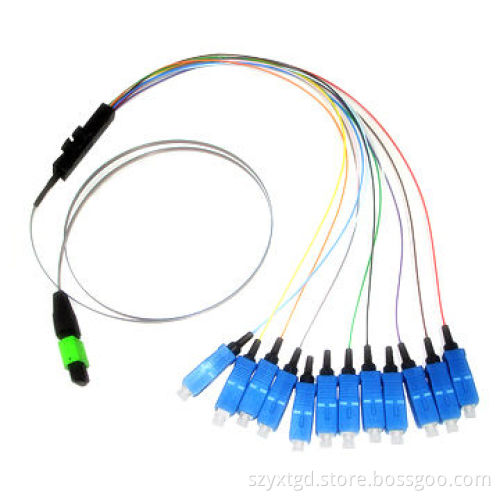

MPO-SC Fiber Optic Patch Cord, Insert and Pull Latching Connector for FTTH

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

MTP/MPO fiber optic patch cord is used in ribbon type multi-fiber assemblies, unlike simplex or duplex

There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4, 8, 12 and 24 fibers

Features:

Applications:

Specification:

Ordering information:

Single mode and multi-mode (flat), APC (catercorner 8° angled) available

High fiber density (maximum 24 fibers for multimode)

Fiber in single connector: 4, 8, 12 and 24

Insert/pull latching connector

High reflection loss with APC

Compliant with Telcordia GR-1435-CORE specification and RoSH Directive

Telecommunication networks

Test equipment

Optic fiber communication networks

Optical access network

Optical CATV

Optical LAN

Fiber diameter: SM 9/125, MM 62.5/125, 50/125µm

Insertion loss: SM PC d0.5dB, APC d0.4dB, MM PC d0.4dB

Return loss: SM PC e45 dB, APC e55dB, MM PC e25dB

Insert-pull test: 1,000 times d0.5dB

Interchange: d0.5dB

Operating temperature: -40 to 80°C

Anti-tensile force: 15kgf

MPO/PCMPO/PC-SM-12CORE2M

Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4and SMA

Ferrule end-face: PC, UPC and APC

Core type: single-mode (SM: 9/125µm), multi-mode (MM:50/125 or 62.5/125µm)

Cable length: 1, 2, 3 meter or customized

Cable type: PVC, LSZH, OM3, OFNR, OFNP and Plenum

Minimum order quantity: 20

Packaging details: 500 units/carton
