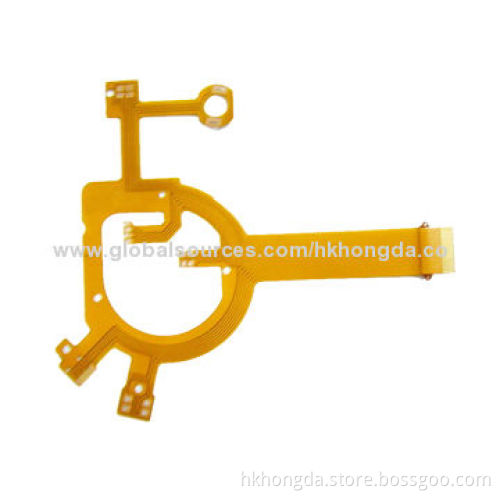

Flexible PCB Manufacturer, FPCB PI, RoHS, UL ISO9001

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Min.: 10x45mm

Max.: 250x1, 200mm

Available laminates material: PI.PET, FR4-PI

Finished board thickness tol.: ±0.01mm

Finished hole diameter: 0.1mm

Finished hole diameter: 0.6mm

NPTH hole diameter tolerance: ±0.025mm

PTH hole diameter tolerance: ±0.050mm

Copper foil thickness: 12,18, 35, 70um

Circuit width/spacing(Min.): ≥0.065mm (1/2oz), ≥0.05mm(1/3oz)

Surface finished type:

OSP gold plating, immersion gold, tin plating (lead free)

Gold flash Ni/Au thickness:

Immersion tin thickness: 0.7-1.2um

Tin plating thickness: 3-15um

Drill hole position tolerance: ±0.05mm

Punching dimension tolerance:±0.05mm

Certificates: RoHS, UL, ISO9001

Ni:2.54-9um

Au:0.025-0.5um
