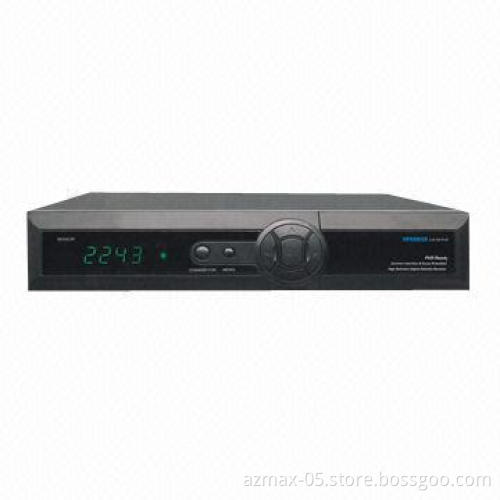

Satellite Receiver, Decoder Openbox S10 CAS+CI+LAN+USB+PVR+MULTI

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Card+Ethernet sharing

FTA+CA+CI+LAN

Openbox HD

Ali3602 chipset, Sharp tuner

Protocol: CCCAM, NEWCAMD, MGCAMD network

Mainboard: 396MHz MIPS CPU, 128MB DDR400 RAM, memory clock 198MHz, 4MB serial flash, single tuner, DVB-S2 demodulator

Standard: DVB-S2 standard (ETSI EN 302 307)

Decode mode: QPSK, 8PSK, 16APSK. MPEG-2/H.264 hardware decoding, video text decoder

Transport stream: MPEG-2 ISO/IEC 13818 transport stream specification

MPEG: MPEG2 SD, MPEG2 HD, H.264/AVC SD, H.264/AVC HD, supports MPEG4/MPEG2-HD/SD, DVB-S2/DVB-S

Tuner voltage and format: vertical +13.5V, horizontal 18V

Current: 500mA

CA&CI: common interface slot x 1, CA card reader slot x 1, 10/100Mbit Ethernet interface

Aspect ratio: auto, 16:9 pillar box, 4:3 pan and scan, 4:3 letter box

F. MPEG: MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2, AC3, multimedia files playback (by USB)

Screen format: 4:3/16:9 auto, 2 SCART, automatic and manual channel scan options

Audio frequency mode: stereo/left/R-CH, HDMI video and audio output (576i, 576p, 72op, 1080i)

Digital audio output: S/PDIF by coaxial and optical, YcbCr available

Supported DVR: DVR with USB HDD, time shifting with USB HDD, PVR (external USB), EPG for 7 days supported

USB: USB 2.0 port x 1, upgrade software and update channel database through USB 2.0 port

File system: FAT12, FAT16, FAT32, NTFS (only support first partition)

MIME: supports JPG, BMP, MP3, WMA

Language: English, French, Deutsch, Spanish, Italian, Portuguese, Turkish, Russia, Polish, Arabic, Hungarian), multiple language DVB subtitle and teletext supported, teletext and subtitle out through OSD

A/V output interface: YPrPb, RCA with CVBS, SCART with CVBS, HDMI (HDCP)
