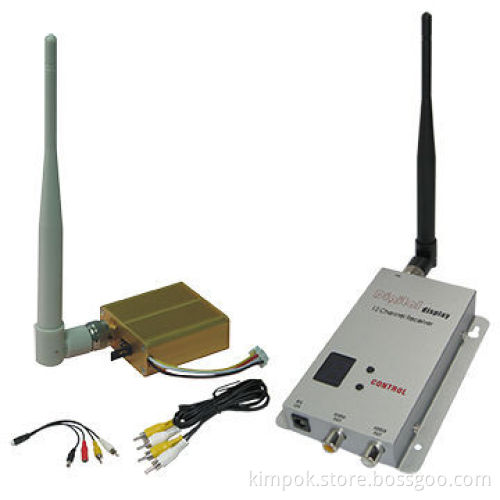

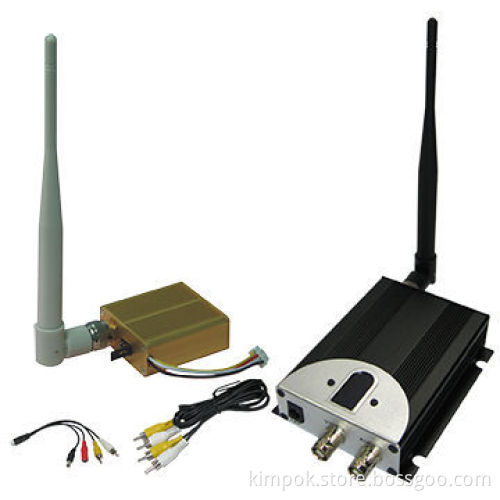

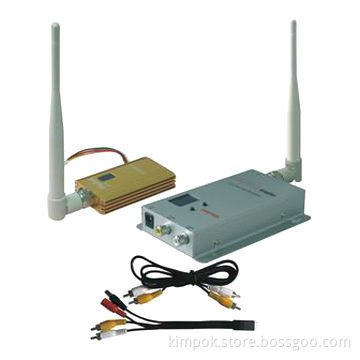

RC Helicopters Mini FPV Video Transmitter with 1.2GHz, 700mW and 1,400m Transmitting DistanceNew

RC Helicopters Mini FPV Video Transmitter with 1.2GHz, 700mW and 1,400m Transmitting DistanceNew

Get Latest Price

Payment Type:: Wire Transfer or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Wire Transfer or PayPal

Product Description

Specification:

Working voltage: 12V DC
Output frequency: 0.9/1.2/1.3GHz
Channel: 8CH, video and audio synchronization
Output power: 700mW
Weight: 72g
Dimensions (L*W*H): 48*45*19mm
Transmitting distance (open/unobstructed space): 1,000 - 1,400m

Packaging:

Transmitter
12-channel receiver
Antenna
Video cable and transmitter connecting cable
Power adapters for transmitter and receiver

Installing:
A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack
B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation
C. Set the same channel with transmitter and receiver

Working voltage: 12V DC

Output frequency: 0.9/1.2/1.3GHz

Channel: 8CH, video and audio synchronization

Output power: 700mW

Weight: 72g

Dimensions (L*W*H): 48*45*19mm

Transmitting distance (open/unobstructed space): 1,000 - 1,400m

Transmitter

12-channel receiver

Antenna

Video cable and transmitter connecting cable

Power adapters for transmitter and receiver
