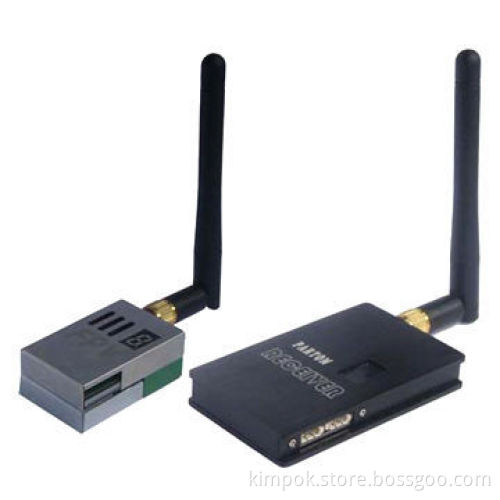

FPV Video Transmitter and Receiver with 5.8GHz, 600mW, Long Transmitting Distance of 1100mNew
  • FPV Video Transmitter and Receiver with 5.8GHz, 600mW, Long Transmitting Distance of 1100mNew
  • FPV Video Transmitter and Receiver with 5.8GHz, 600mW, Long Transmitting Distance of 1100mNew
FPV Video Transmitter and Receiver with 5.8GHz, 600mW, Long Transmitting Distance of 1100mNew
FPV Video Transmitter and Receiver with 5.8GHz, 600mW, Long Transmitting Distance of 1100mNew

FPV Video Transmitter and Receiver with 5.8GHz, 600mW, Long Transmitting Distance of 1100mNew

Get Latest Price
Payment Type:
Wire Transfer or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Wire Transfer or PayPal
Product Description
Product Description
  • Professional CCTV wireless transmitter and receiver kit with 1.2GHz, 600W and 9CHs
  • Digital play, 9CH transmitter, credibility, synchronic, transmitting AV signal, used for long-distance of wireless transmitting equipment
  • Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project
  • Transmitter parameters:
    • Working voltage: 12V DC
    • Working current: 400mA
    • Working frequency: 5.8GW
    • King channels: 9-ch
    • Working power: 600mW
    • Transmitting range: 800 to 1100m (in open fields)
    • Transmitter accessories: transmitter, antenna, TX cable (offer adapter for transmitter, please use 12V DC, 3A adapter)
    • Weight: 35g
    • Dimensions: 45.5x28.5x18mm
  • Receiver parameters:
    • Working voltage: 12V DC
    • Working current: 200mA
    • Working frequency: 5.8G
    • Working channels: 9-ch
    • Receiver accessories: receiver, antenna and TX cable (offer adapter for receiver, please use 12V DC, 1A adapter)
    • Weight: 67g
    • Dimensions: 72x43x11mm
    • Whole set: about 360g
  • Installing:
    • Line has 5 plugs for connecting transmitter, camera and power supply
    • One of line's points connecting to transmitter and another has 4 plugs (red, yellow, white and black)
    • Red plug connect 12V DC/1,000mA and can also connect battery
    • White and yellow plug connect to camera's audio and video apart and black one connects camera's power input jack
    • Push control button and can change channel of receiver
    • Meanwhile, push and last several seconds, can close digital play and turn into saving power model
    • Then push it again and can replay
    • Function can be able to lock channel and so as to avoid mistaking operation
    • Set same channel with transmitter and receiver
  • Working voltage: 12V DC
  • Working current: 400mA
  • Working frequency: 5.8GW
  • King channels: 9-ch
  • Working power: 600mW
  • Transmitting range: 800 to 1100m (in open fields)
  • Transmitter accessories: transmitter, antenna, TX cable (offer adapter for transmitter, please use 12V DC, 3A adapter)
  • Weight: 35g
  • Dimensions: 45.5x28.5x18mm
  • Working voltage: 12V DC
  • Working current: 200mA
  • Working frequency: 5.8G
  • Working channels: 9-ch
  • Receiver accessories: receiver, antenna and TX cable (offer adapter for receiver, please use 12V DC, 1A adapter)
  • Weight: 67g
  • Dimensions: 72x43x11mm
  • Whole set: about 360g
  • Line has 5 plugs for connecting transmitter, camera and power supply
  • One of line's points connecting to transmitter and another has 4 plugs (red, yellow, white and black)
  • Red plug connect 12V DC/1,000mA and can also connect battery
  • White and yellow plug connect to camera's audio and video apart and black one connects camera's power input jack
  • Push control button and can change channel of receiver
  • Meanwhile, push and last several seconds, can close digital play and turn into saving power model
  • Then push it again and can replay
  • Function can be able to lock channel and so as to avoid mistaking operation
  • Set same channel with transmitter and receiver
