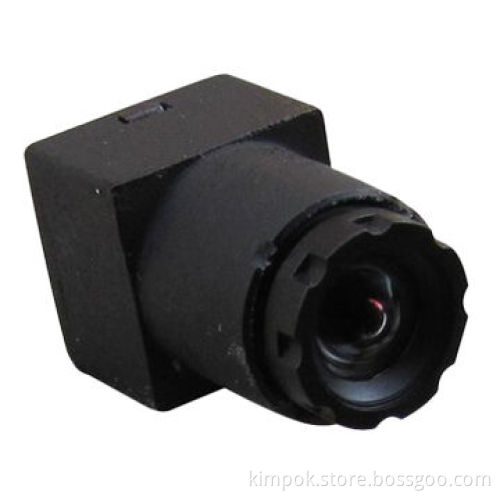

Mini CCTV Camera with 0.008 Lux 520TVL, 90-degree Viewing AngleNew

Mini CCTV Camera with 0.008 Lux 520TVL, 90-degree Viewing AngleNew

Get Latest Price

Payment Type:: PayPal, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	PayPal, T/T

Product Description

Features and functions:

It's a ultra small high definition CCTV camera with excellentnight vision
Size: 10.5 x 10.5 x 17.5mm only
Weight: 2g
Easy to install and conceal
Minimum illumination: 0.008 lux, which can view clearly inalmost complete darkness
Full TV system
Applicable worldwide
Use for home and business security, shops, pubs andrestaurants, building sites, warehouses, boats, marine use, sportsuse, wildlife, farms, stables and kennels, surveillance and covertuse, nursery and child care, firearm
Ready AV/BNC cable and power supply cable, JustPlug-and-play

Specifications:

Pick up element: single chip 1/3-inch CMOS
System: NTSC and PAL
Number of pixel:
- NTSC: 656 x 492
- PAL: 786 x 576
Image signal process: digital signal processing system
Sensor dimension: 4.75 x 3.55mm
Horizontal resolution: 520TV lines
Scanning system: 2:1 interlace
Sensitivity: 0.008 lux/f1.2
Lens and viewing angle: 0.5mm f2.0/90°
S/N ratio: 48dB
Video out: 1.0v p-p/75 ohm
Size: 10.5 x 10.5 x 17.5mm
Weight: 2g
Working current: 75mA
Power requirement DC: 3.3-6V
Operating temperature: - 10-50°C, less than 90% RH
Connection: pin1 = red 5V DC, pin2= black GND, pin3= yellowvideo out

Usage:

CCTV cameras can be used directly with a standard tv/vcr or rcavideo monitor
View more than one CCTV camera on your TV/VCR you will need aquad or multiplexer
View on your computer or laptop you will need a DVR card orUSB
Standalone system that records is a standalone DVR
